Omega channel rollforming machine

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

SPO roll forming machines are designed for production of omega- (furring) cannels. Steel blank shall be pre cutted for required length and width or coiled into a roll (strips). The incoming flat width can be changed within narrow range (up to 15 mm) for some shape types using entry movable guides.

One omega- (furring) channel machine produces only one type of shape. The maximum capacity rolling thickness of metal is 2.0 mm, shape height is 80 mm.

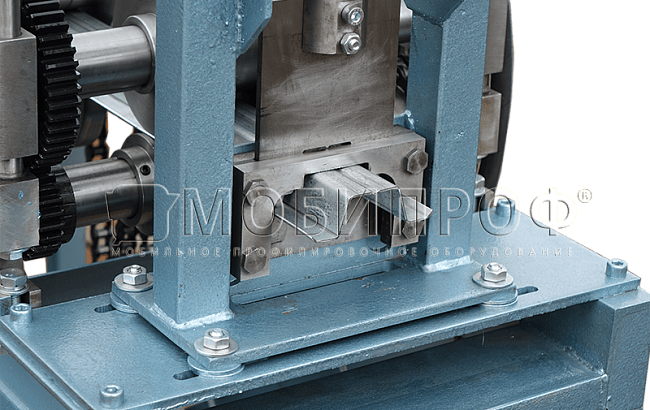

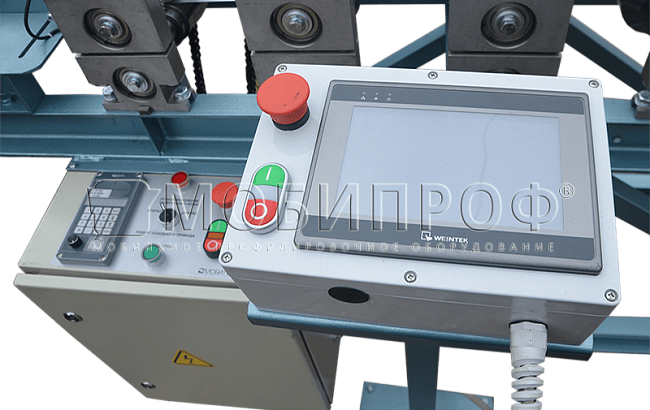

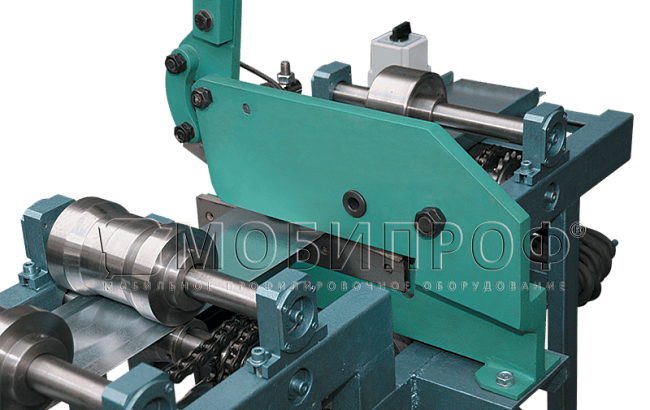

For forming of the coiled steel, the omega channel machine can be fitted with shear and automatic control system with operator touchpad, which increases its productivity several times. The operator touchpad makes the process of parameter entry and monitoring much easier, and allows to memorize up to 10 different operation modes.

Omega-/Furring- channels applications:

  • roof and wall battens, facades sub-construction substructure;
  • greenhouse frames (arch shape);
  • fences;
  • scaffoldings.

The machines are manufactured in the following versions:

  • SPO-06
  • SPO-08
  • SPO-10
  • SPO-12
  • SPO-15

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

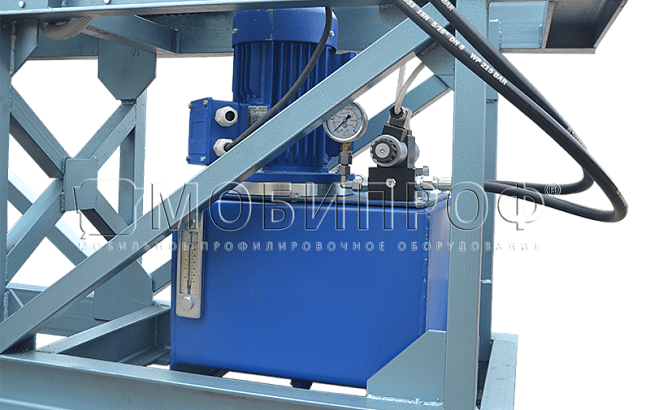

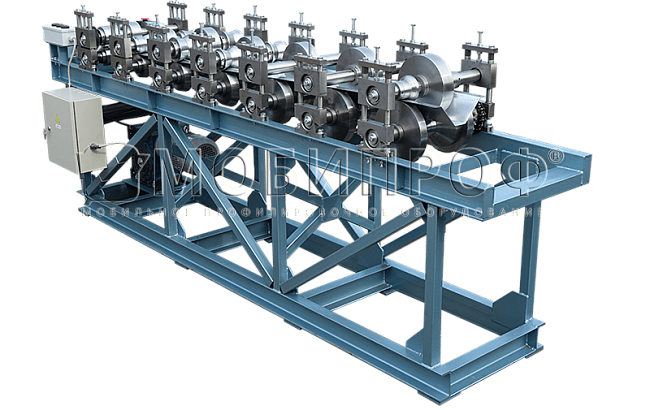

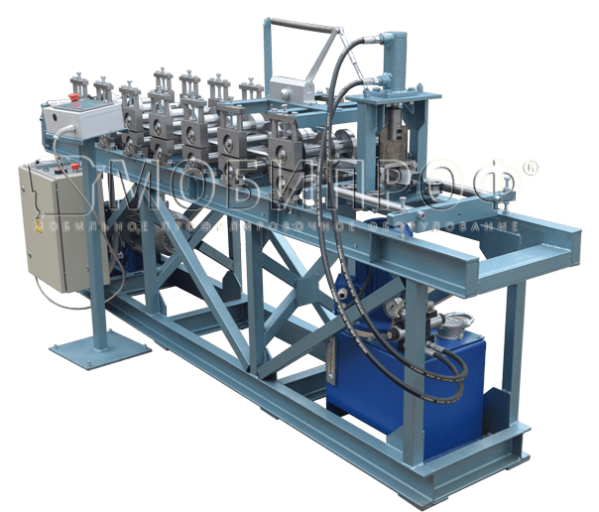

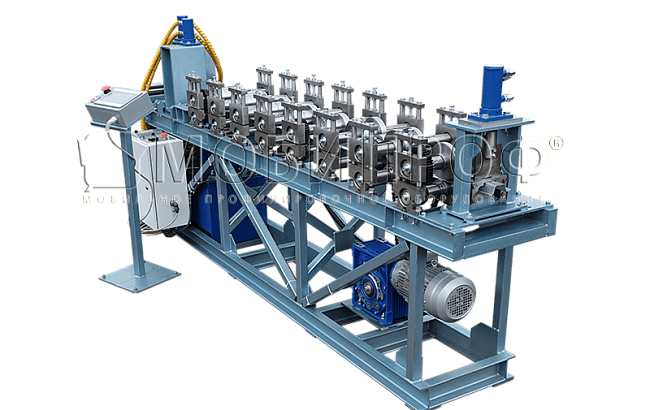

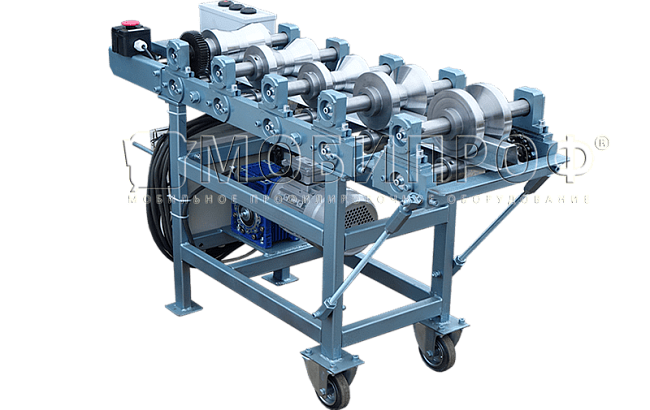

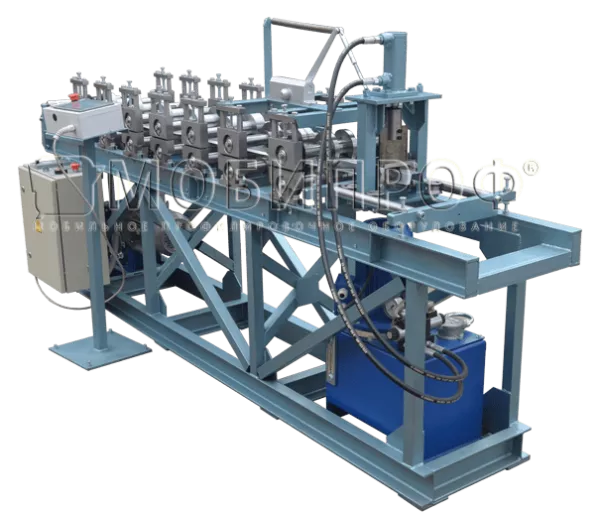

* On the photo, the machine shown with optional equipment.

Advantages

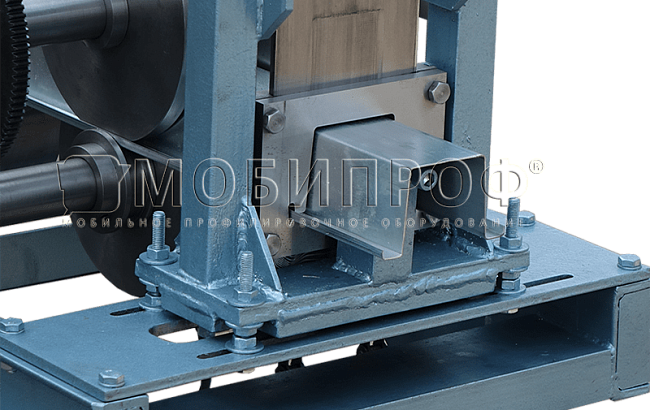

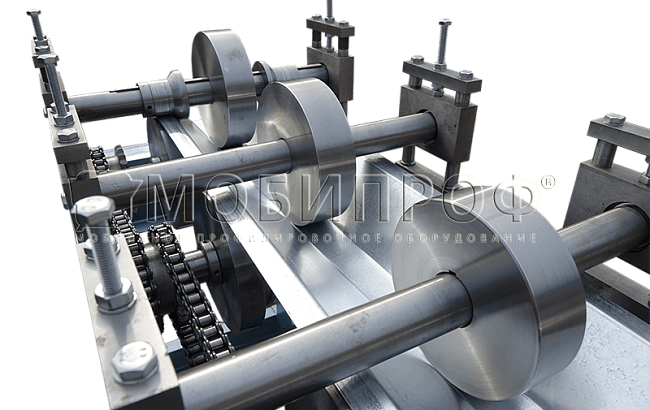

  • calibration mill stand for fine-adjustment for necessary thickness and metal type;
  • the adjustable guides allow changing the produced shape side flange height (for U-shape);

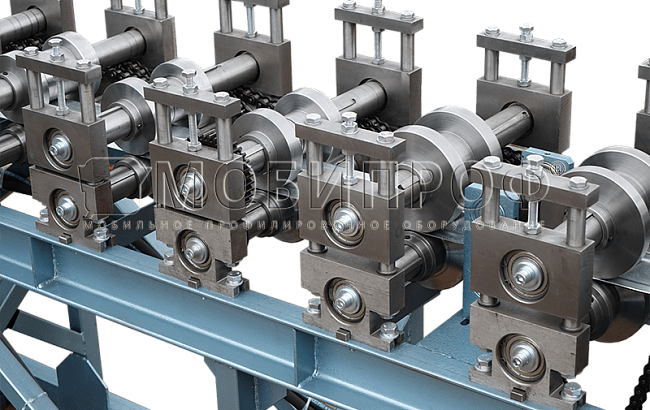

  • heavy duty bearing supports;

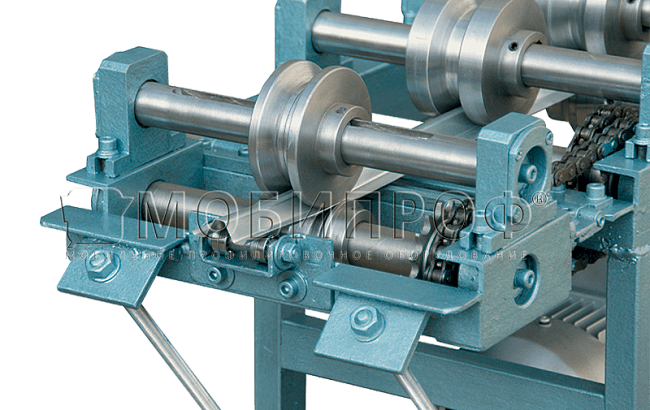

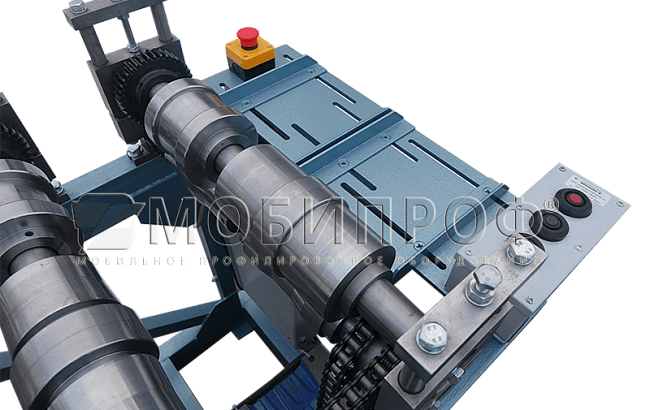

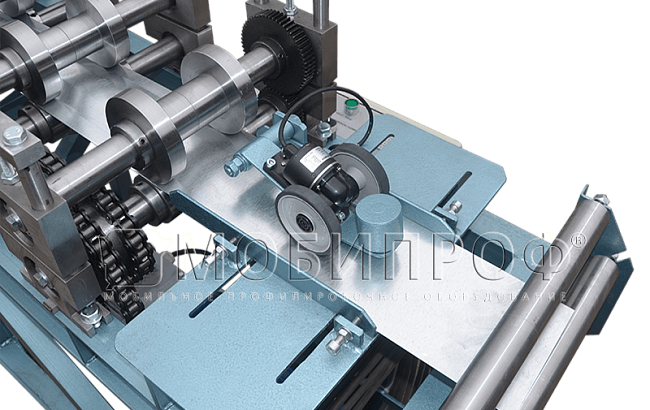

  • adjustable entry guides;
  • unlimited length of produced shapes;
  • simplicity and reliability of process design.
Specifications
Production speed, m/min up to 15
Soft steel thickness S235JR, mm up to 2,0
Drive power, kW 0,75-2,2
Supply voltage, V 380 (220 NC)
Dimensions, LхWхH, mm depends on the type of profile
Weight, kg depends on the type of profile
Video
Types of profiles
Strip width
170 mm

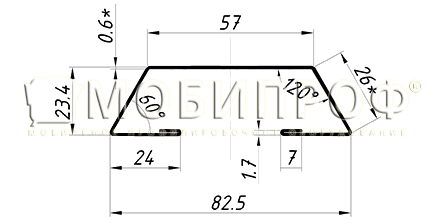

Profile dimensions
23.4х82.5 mm
KT-06.85х24х57

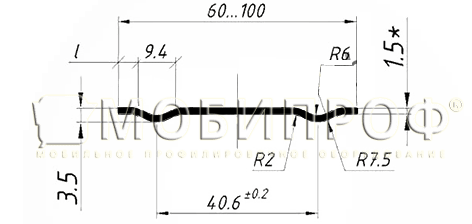

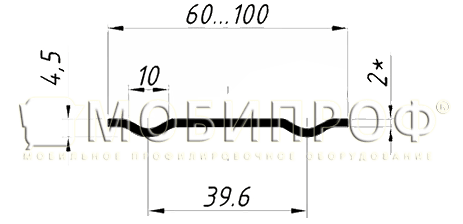

Strip width
61,5-101,5 mm

Prifile dimensions
60-100 mm
Ob-15.4x100
Strip width
62-102 mm

Profile dimensions
60-100 mm
Ob-20.5х100

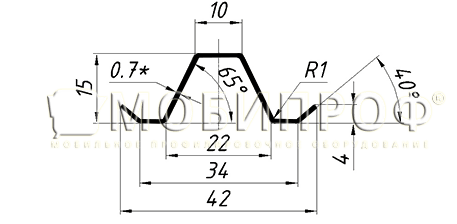

Strip width
61 mm

Profile dimensions
15х42 mm
SPO-07.15.4
Strip width
166 мм

Profile dimensions
31.2х110.5 mm
SPO-12.31.2х110.5
Strip width
134 mm

Profile dimensions
20х100 mm
SPO-12.20x60
Strip width
140 mm

Profile dimensions
98x30x40 mm
SPO-15.40x100.2

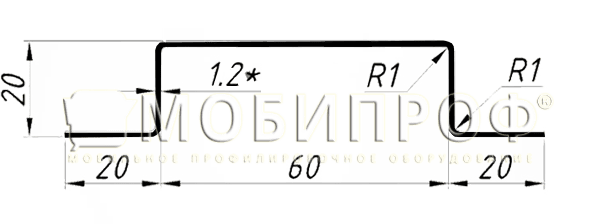

Strip width
86 mm

Profile dimensions
16х60 mm
SPO-15.16x60
Strip width
125 mm

Profile dimensions
20х60x93 mm
SPO-15.20x93
Profile width
300-400 mm

Profile dimensions
53х200-300
SPO-12.53x200
Strip width
255 mm

Profile dimensions
70x120 mm
SPO-12.70x120
Strip width
94 mm

Profile dimensions
10х80 mm
SPO-10.10х80
Strip width
139 mm

Profile dimensions
18.5х105 mm
SPO-06.18.5х105
Strip width
167 mm

Profile dimensions
24х135 mm

SPO-06.24х135
Strip width
167mm

Profile dimensions
51х83 mm
SPO-06.51х83
Strip width
200 mm

Profile dimensions
80х40 mm

SPO-08x40
