Drift eliminator roll former

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

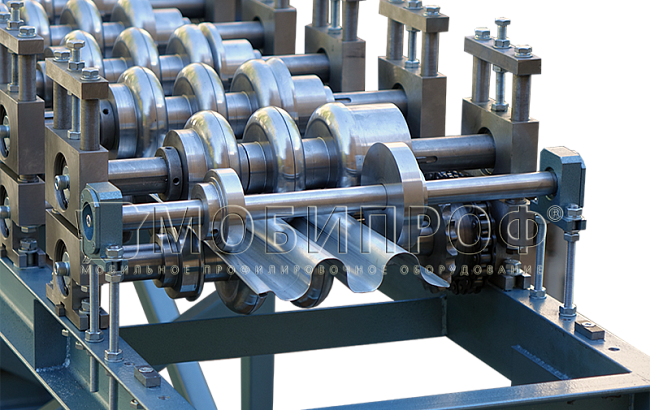

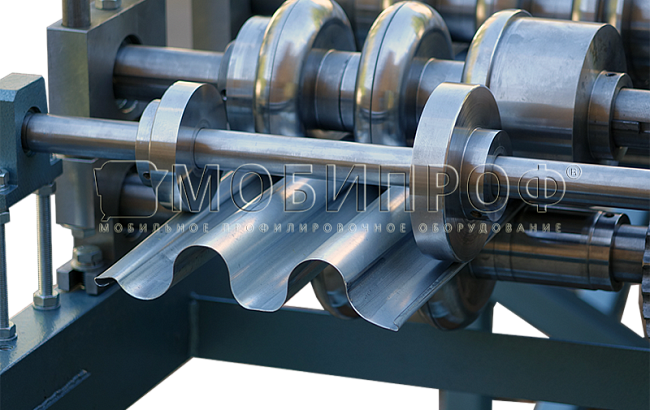

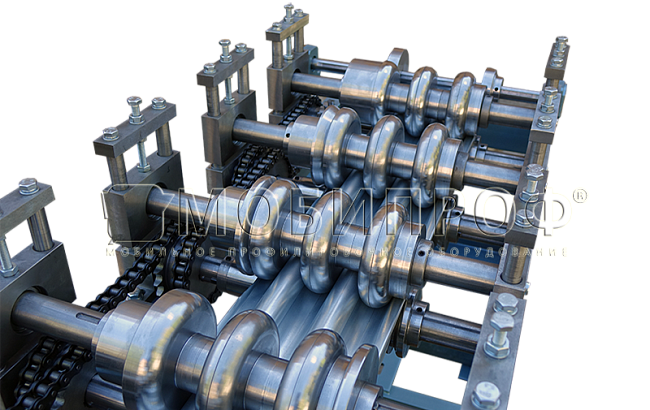

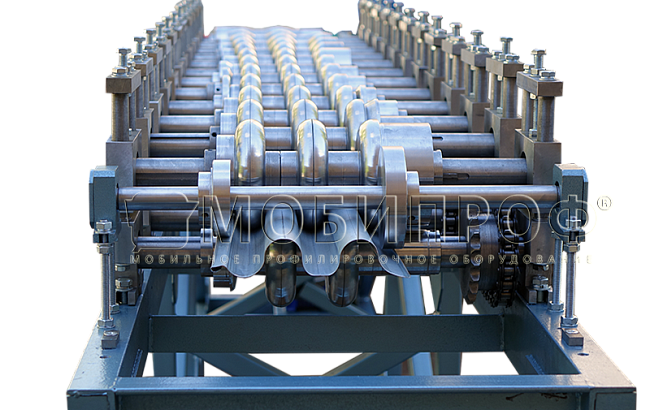

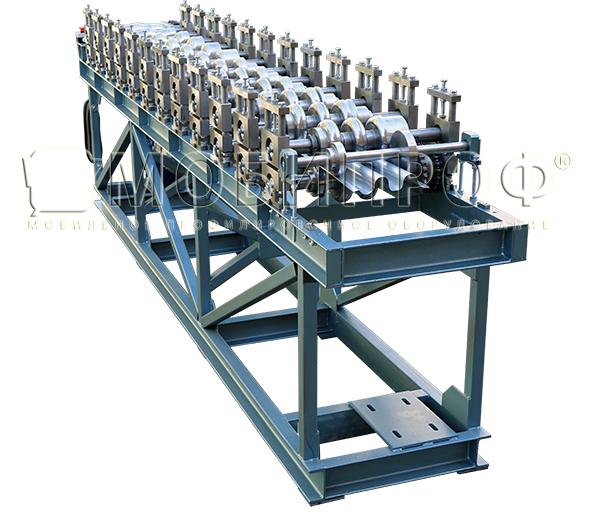

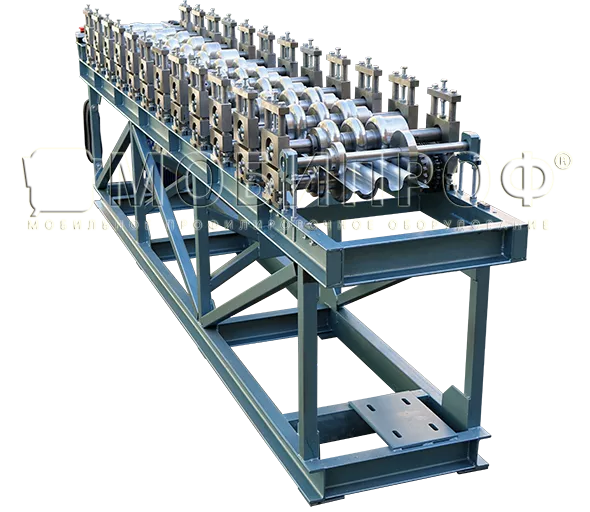

Roll forming machine Mobiprof VlnP.R19-39x205.Зv.07 is designed for production of “Drip eliminator” profile from thin-sheet galvanized steel 0,4-0,7 mm of thickness. “Drip eliminator” profile used in industrial air conditioning systems.

The blanks cut to width and length are used for rolling, the operator feeds the workpiece onto the machine manually. To increase the capacity and automate the production process, the machine can be optionally equipped with a device for cutting the shapes into specific cut lengths (stationary hydraulically-operated guillotine) and automated control system. In this case band (strip) is used, and a decoiler is installed upstream of the machine.

Using the numeric control system the length of finished shapes and their quantity are set, and up to 10 production programs can be entered into memory.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

Advantages
  • design simplicity and reliability;
  • unlimited length of produced shapes;
  • the optimized configuration of shaping rollers for high-quality rolling;
  • calibration mill stand;
  • used either as a separate unit or as a part of automated line;
  • warranty.
Specifications
Production speed, m/min up to 10
Soft steel thickness S235JR, mm 0,7
Maximum width of strip, mm 320
Drive power, kW 3,0
Supply voltage, V 380
Dimensions, LхWхH, mm 3500x900x1100
Weight, kg 900
Video
Types of profiles
Strip width
320 mm

Profile dimensions
205х38,7 mm
VlnP.R19-39x205.Зv.07
