Roll forming machine to produce Z- profile

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

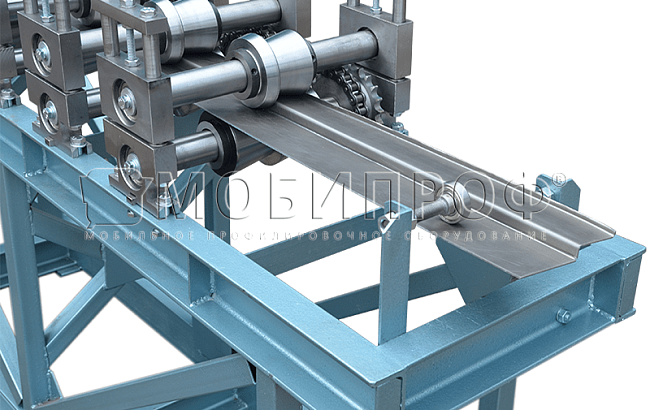

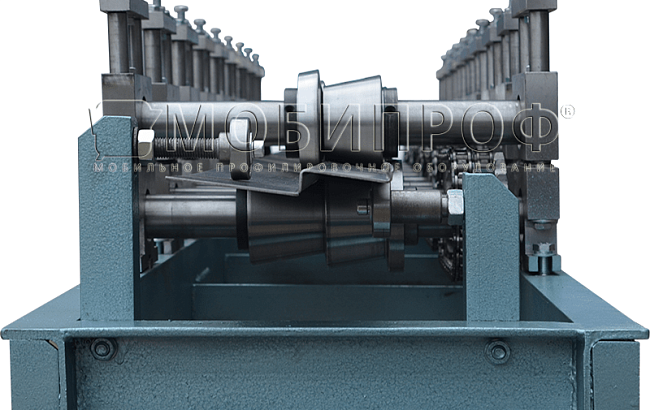

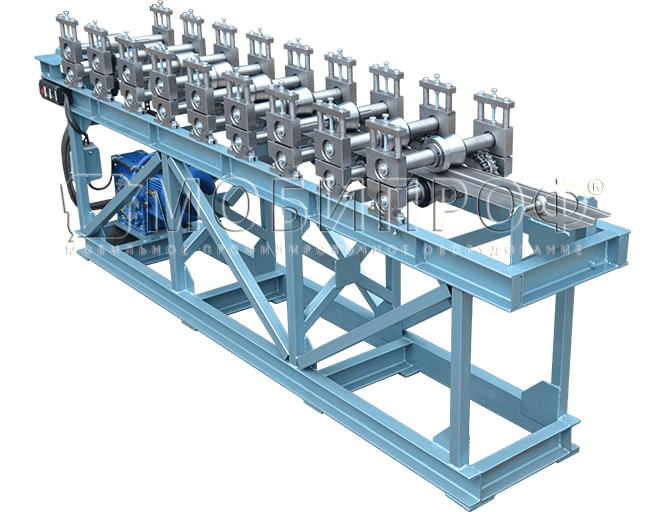

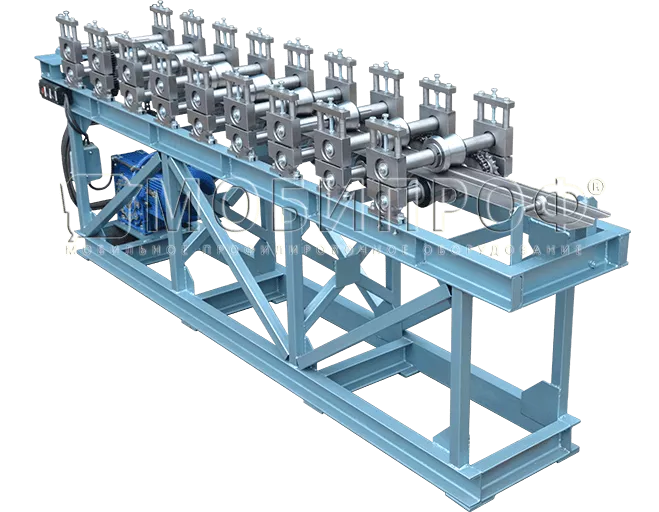

ZP series shaping machines are designed to produce Z- shaped profile from galvanized steel сapacity up to 1.5 mm.

Blanks for Z- chanel must be a certain width and pre-catted of required length or a rolled up strip. In the latter case, the machine can optionally be equipped with a profile guillotine with pneumatic or hydraulic drive (depending on metal thickness) for cutting the finished shape at the outlet and numerical control on color touch screen (CNC). NC is equipped with operator touchpad enabling entry of up to 10 different programs of the required product lengths and product quantity into the machine memory.

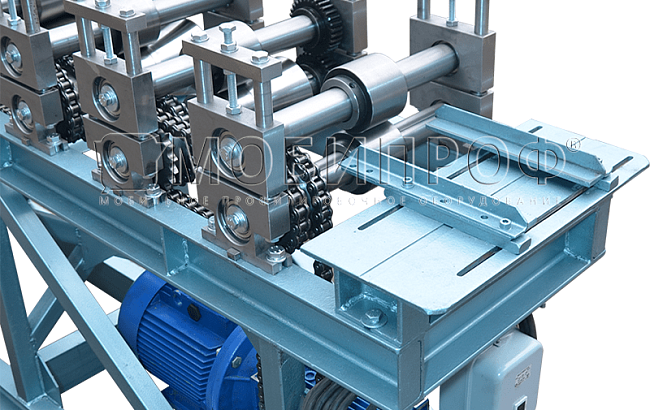

Machine is designed to produce only one chanel type. The incoming blanks width can be changed within narrow range (up to 5 mm) for some profiles types using movable entry guides.

Z-shape is used in building face structures as a reinforcement shape, in production of metal door frames and other metal structures.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.


Advantages

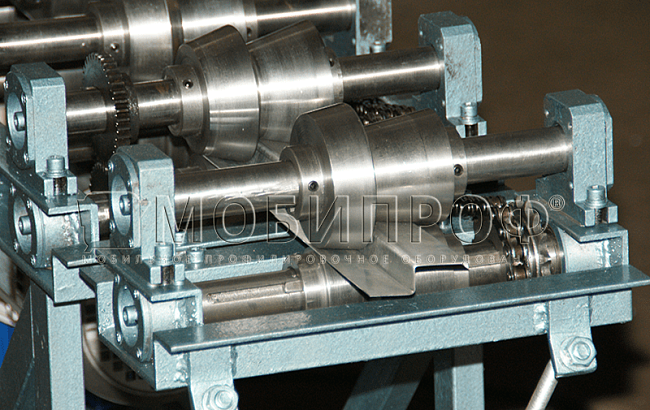

  • calibration mill stand for fine-adjustment for the required type and thickness of metal;
  • the optimized configuration of forming rolls for high-quality rolling of all metal types;
  • equiped with additional gear wheels and side idle rollers for provision of shape rolling and ideal configuration;
  • wear-resistant hardened rollers made of alloyed structural steel;
  • simple and reliable design.
Specifications
Production speed, m/min up to 10
Soft steel thickness S235JR, mm 0,5-1,5
Maximum width of strip, mm up to 200
Drive power, kW 0,75-2,2
Supply voltage, V 380 (220 NC)
Dimensions, LхWхH, mm depends on the type of profile
Weight, kg depends on the type of profile
Video
Types of profiles

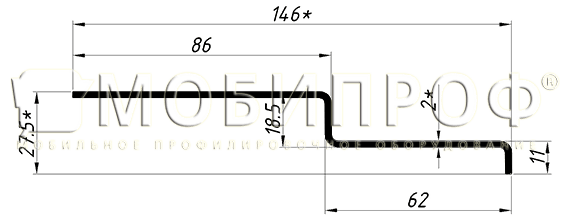

Strip width
166 mm

Profile dimensions
146x86x62 mm
ZP-20.86х19х62
Strip width
86 mm

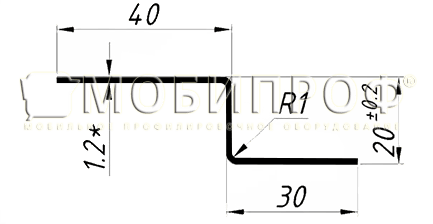

Profile dimensions
40x20x30 mm
CP-Z-12.40x20x30
Strip width
68 mm

Profile dimensions
15x40x15 mm
ZP-15х40х15.05
Strip width
103 mm

Profile dimensions
70x36x20 mm
ZP-50х36х20.10
