Designed for uncoiling a metal strip coiled in a 2 000 kg roll and up to 350 mm wide. The Expanding of the support bars synchronously by rotation of the handwheel. Equipped with a system to prevent unwinding by inertia.
Line is intended for production of a half-round or shaped gutters from thin-sheet galvanized steel 0,4-0,6 mm of thickness with plastisol or pural coatings. Gutter is one of the elements of the rain ware system responsible for draining rainwater and meltwater from the roofs of buildings.
Dual sided hemming machine is intended for rolling of edges in a single pass from thin-sheet galvanized steel 0,4-0,5 mm of thickness. The machine with stepless width adjustment from 90 mm to 690 mm conveniently via handwheel.
PK series shaping machines are designed for production of “Window trim” profile made of coiled galvanized steel or steel with polymer coating, 0.4 to 0.6 mm thick. The shape rolling is performed in two passes - one side at a time.
Produces roofing panels with single snap lock seam, the distinctive features of which are simple and quick installation of the panel without the use of special tools, hidden mounting system, allow for thermal expansion of the material.
Equipment is intended for production of a gutter from thin-sheet galvanized steel 0,4-0,6 mm of thickness with plastisol or pural coatings. Gutter is one of the elements of the rain ware system responsible for draining rainwater and meltwater from the roofs of buildings.

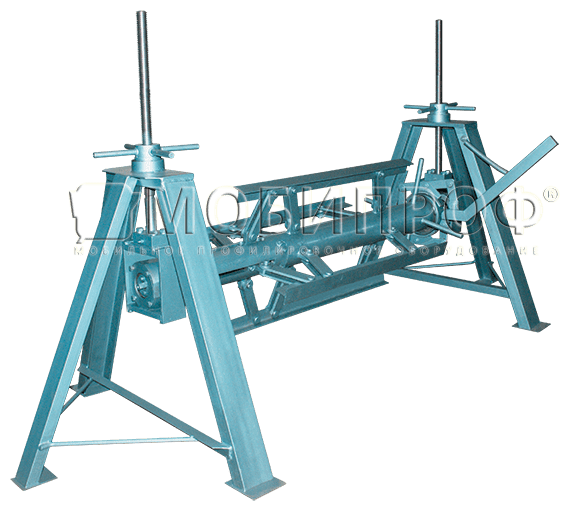

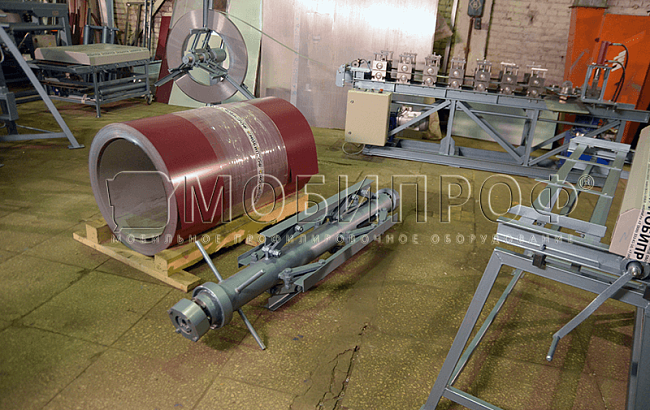

Non-driven double-support self-lifting and self-aligning roll metal decoiler MOBIPROF RMS-1250 is designed for uncoiling rolls weighing up to 8,000 kg and up to 1,250 mm wide.

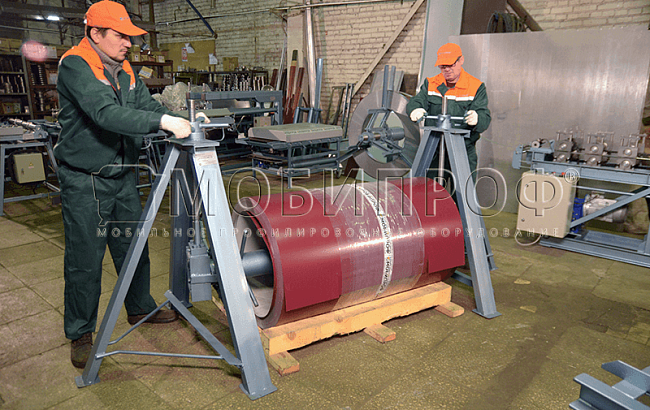

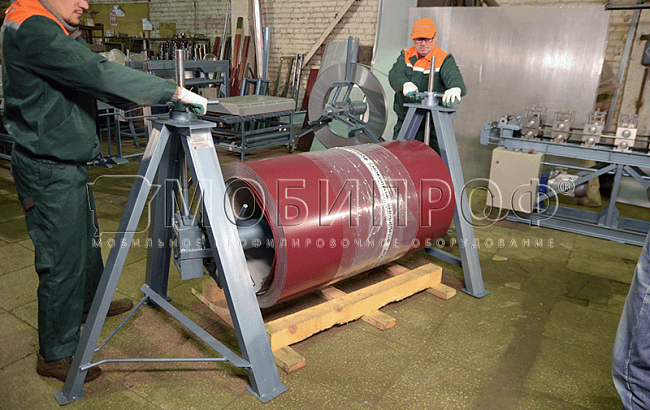

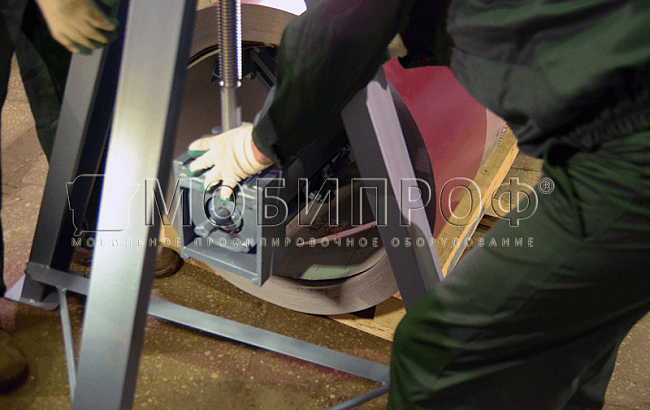

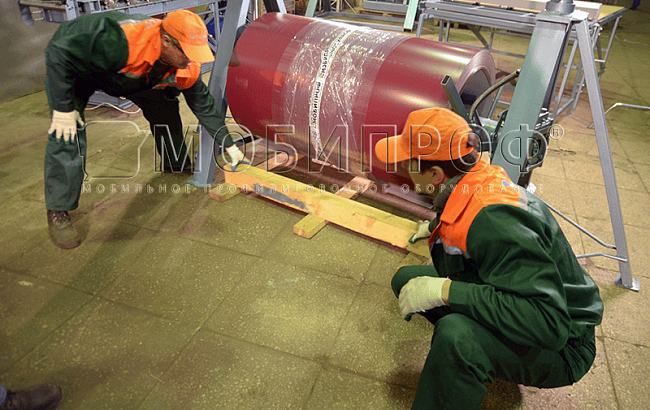

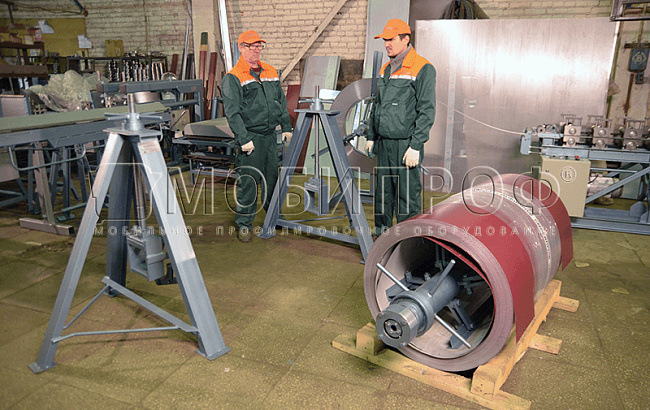

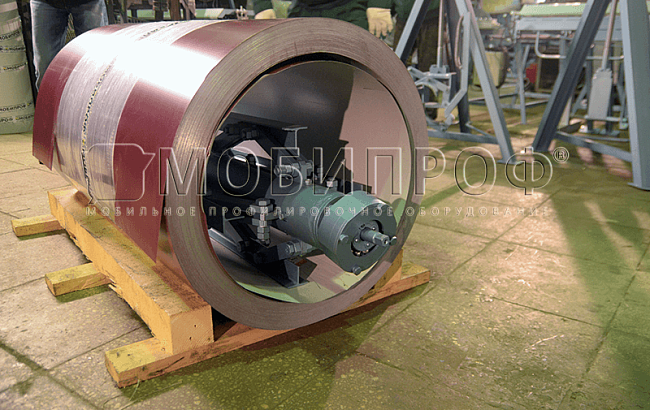

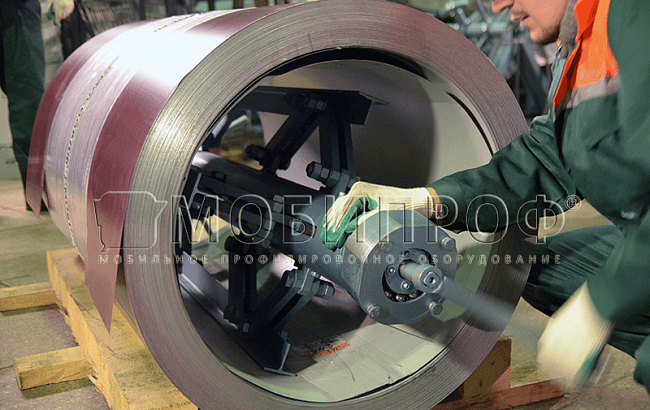

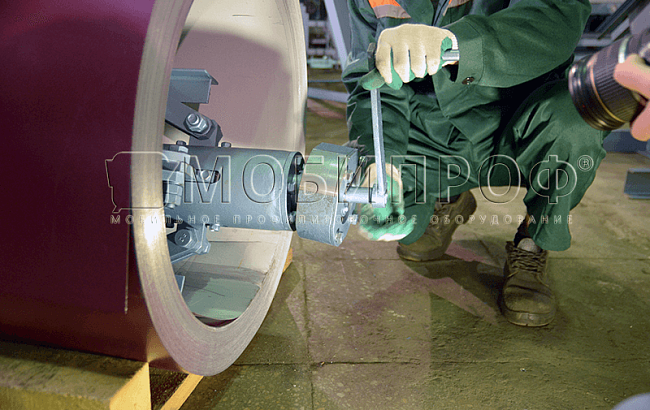

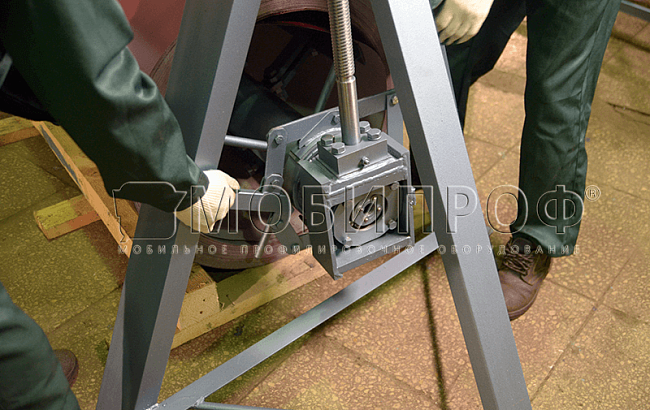

Manual mandrel expansion. Due to the handle, rotation and mutual synchronous expanding of support bars the coil are fixed fast and precisely. To install the roll, using the threaded nut, collapse the mandrel small enough to fit into the inside diameter of the coil. Slide the expandable mandrel into the center of the coil. Turn the threaded nut clockwise until the support bars on the arbor are just snug against the inside of the coil. Finish by rotating the threaded nut clockwise until the support bars are very tight against the inside of the coil. Move the side supports to the mandrel and using the threaded nut assembly on the side supports detach the roll from the floor.

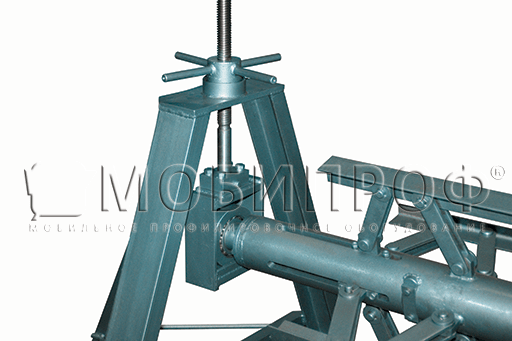

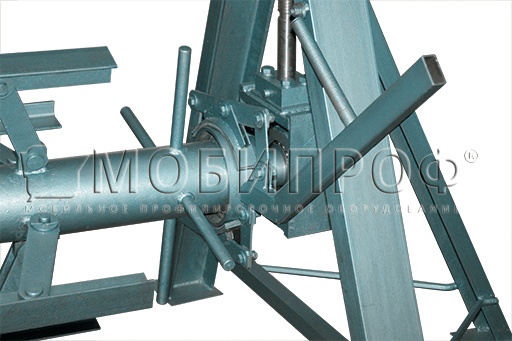

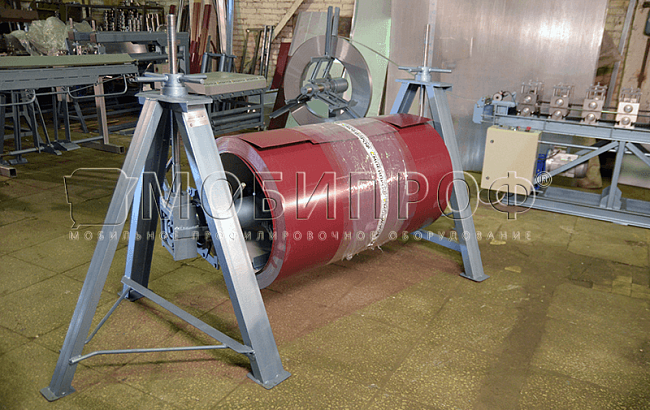

The self-lifting mechanism of the metal decoiler allows using the decoiler both on industrial facilities, and on small construction sites where there are no lifting devices. The decoiler is also equipped with a braking device for the shaft rotation stop.
