Double standing seam machine SFP-700

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Work organization
Standard and options
Video
Description

Standing seam roll forming machine SFP-700  allows to produce high quality roof panels in parallel or conical trays on building sites. The produced roof panels may be either with single or double standing seam of straight or trapezoidal form. The profile width adjusted stepwise by moving the shaping rollers. The roll formed panels may be of various lengths and they are rolled in one pass.

Due to lightweight and small size standing seam roll forming machine SFP-700 is specially suitable for the roll-forming works on building sites (roof, attic). It reduces expenses on storage, transportation and lifting the panels to the roof, and it eliminates their damage, which improves the roof quality and appearance.

The roof panels roll formed on SFP 700 have higher quality, reliability and durability.

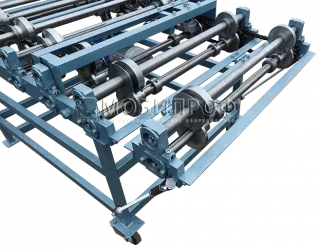

The machine operates with all roofing metal types: coiled and sheet steel, (galvanized steel, steel coated with copper, zinc-titanium, etc.). Six profiling mill stands with optimized configuration of shaping rollers combined with the last straightening mill stand ensures high quality of the produced roofing panels.

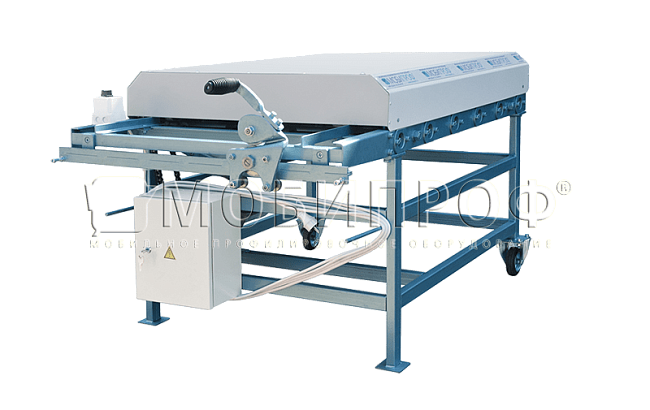

During operation on a construction site, standing seam roll forming machine SFP-700 manufactures items for two teams simultaneously. To facilitate transportation and handling on site, the profiling unit can be easily removed from the frame. To ensure the roofing worker’s safety and protect the shaping mechanism, the machine is equipped with a protective cover.

In order to buy SFP 700 you need to leave a request on the website.

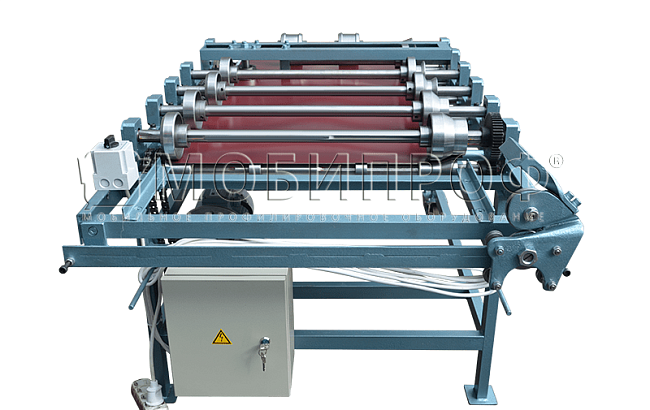

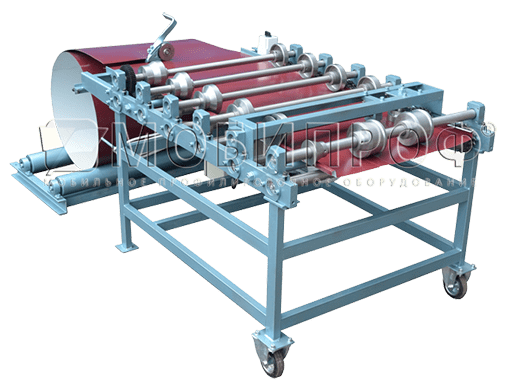

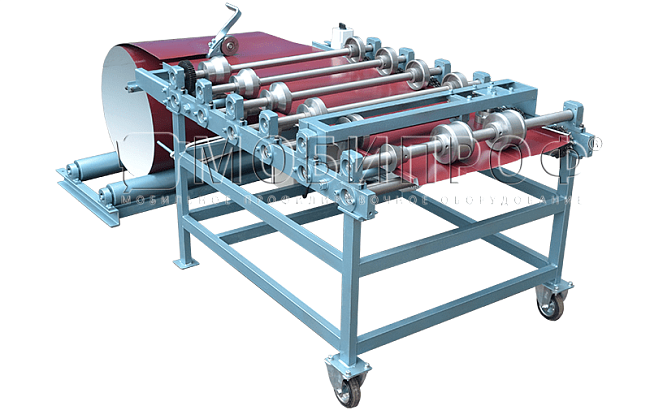

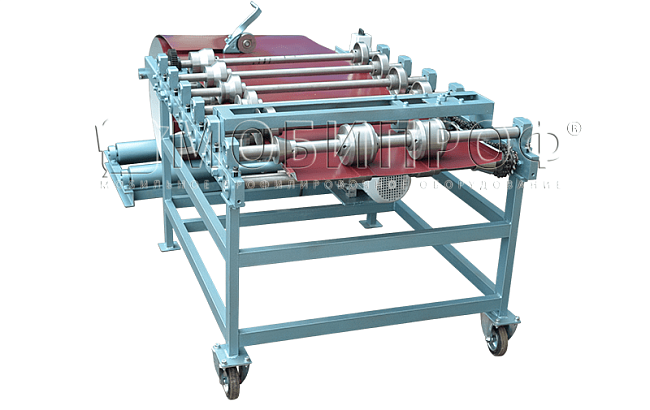

* On the photo, the machine is shown with additional equipment, w/o decoiler.

Advantages
  • calibration mill stand at way out of the machine allow performing a quick fine-adjustment for necessary thickness and metal type;
  • possibility of installing additional bead rollers for half round or trapezoidal type of ribs;
  • it is possible to install an additional set for forming arch-shaped roofing patterns;
  • movable guides allow adjusting the seam size if required;

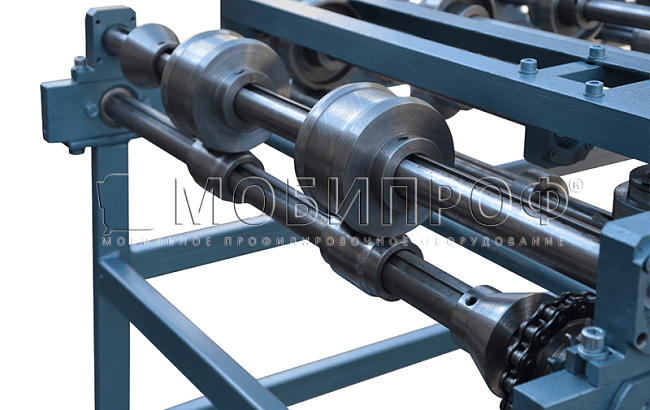

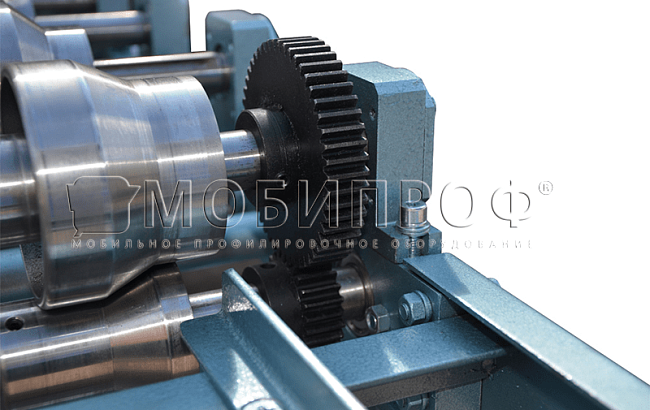

  • jointly treated bearing high rigidity, perfect parallelism and alignment of the shafts;

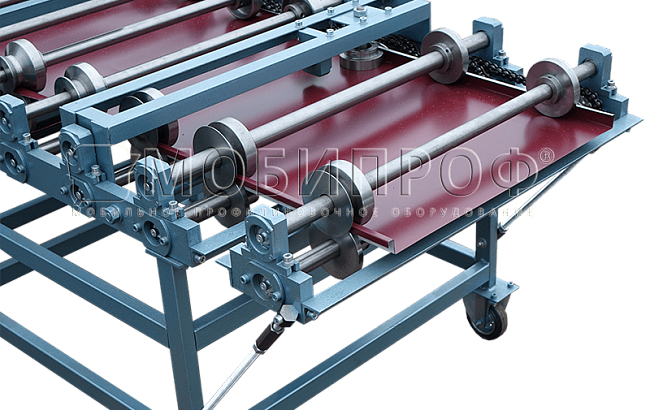

  • to support the center of the panel being rolled, the shaping mechanism is equipped with additional rollers;
  • it is ideal for use on a construction site due to its light weight and equipment overall dimensions;
  • affordable price, two-year warranty and lifetime service support by the manufacturer.
Specifications
Infeed width, mm 250 - 700
Soft steel thickness S235JR, mm 0,45-0,7
Lock height, mm 25
Operating speed, m/min 6,5
Supply voltage, V 380/3-Ph
Drive power, kW 0,75
Dimensions, LхWхH, mm 1450х870х830
Weight, kg 140
Work organization

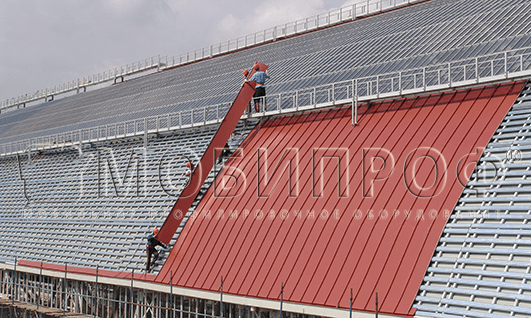

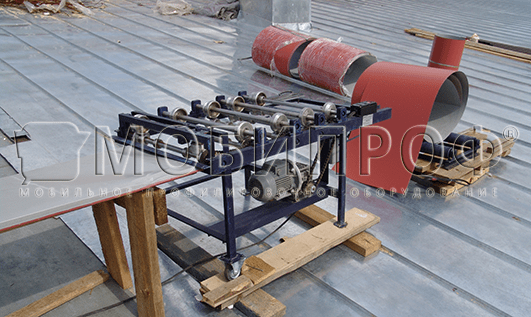

Setting up of the roof panel rollforming machine and metal coils on the roof.

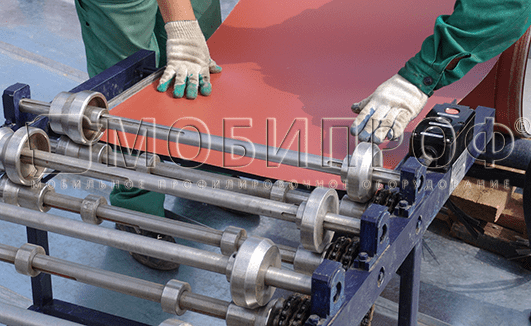

Infeed metal strip in the roofing machine

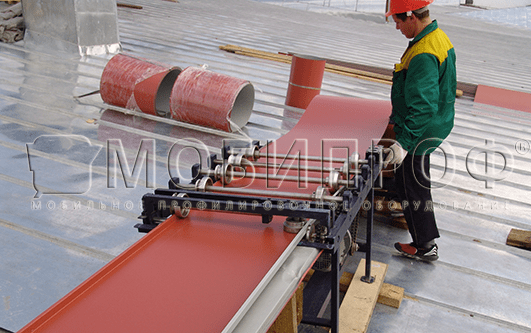

Rolling roof panel on the double standing seam rollforming machine.

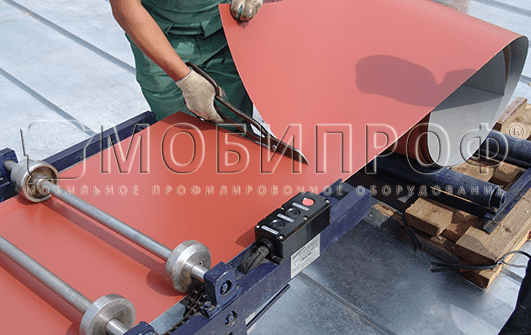

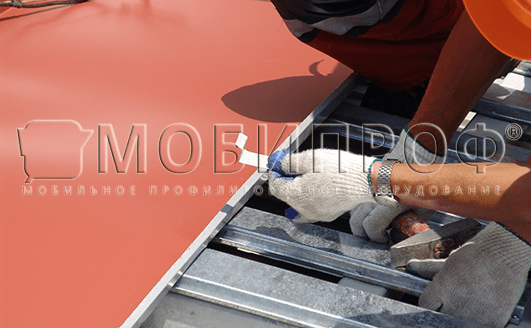

Cutting metal before profiling to obtain the required length of the roof panel.
Развернуть
Standard and options
Options
Set of embossing roller dies "half round"
Set of embossing roller dies "trapezoidal"

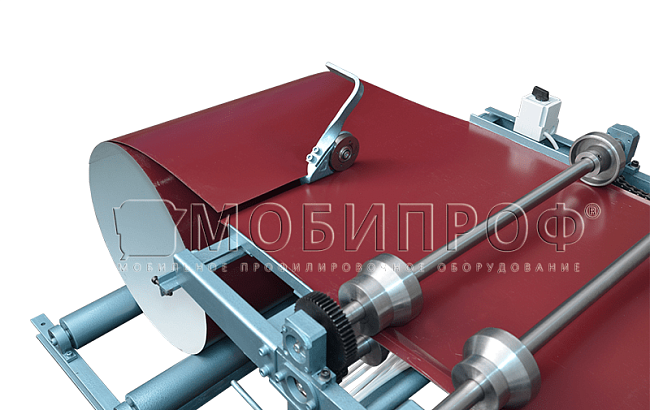

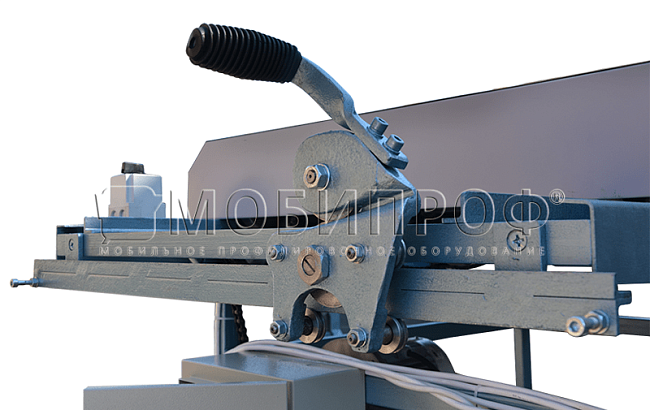

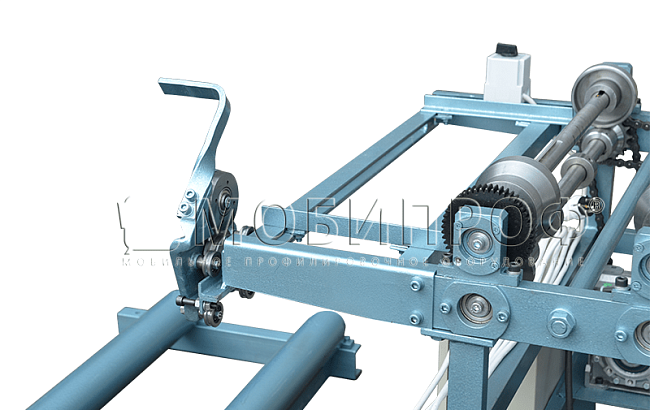

Manual transversal cutting before roll forming
Kit to operate with maximum steel thikness 0.7 mm
For single-phase (220V) operation.
Kit for standing seam roof panel curving "ARC". The minimum radius is 9 meters.
Floor-standing metal decoiler HP-700
Manual with numerical display
Video
Types of profiles
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock height
25 мм
Straight roof panel
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock Height
25 мм
Roof panel with "trapezoidal" type of rib
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock Height
25 мм
Roof panel with "half round" type of ribs
