Zv-0,5 Flat hem roll former

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Standard and options
Video
Description

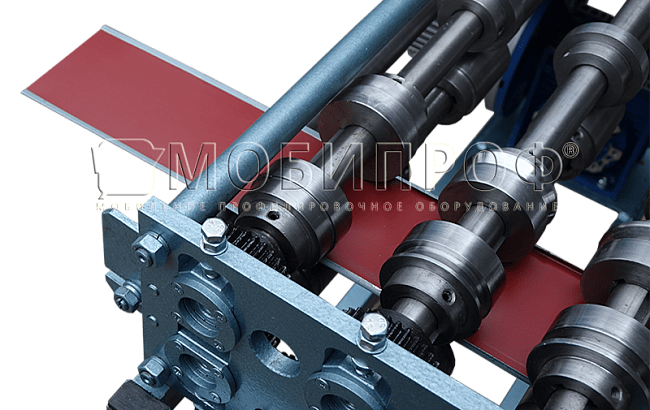

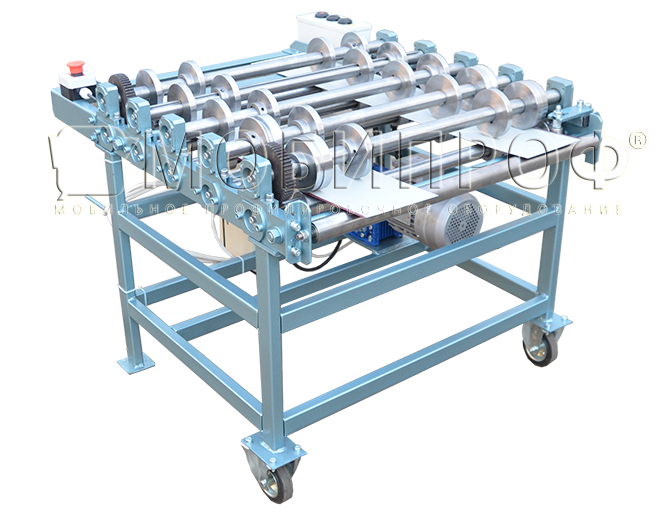

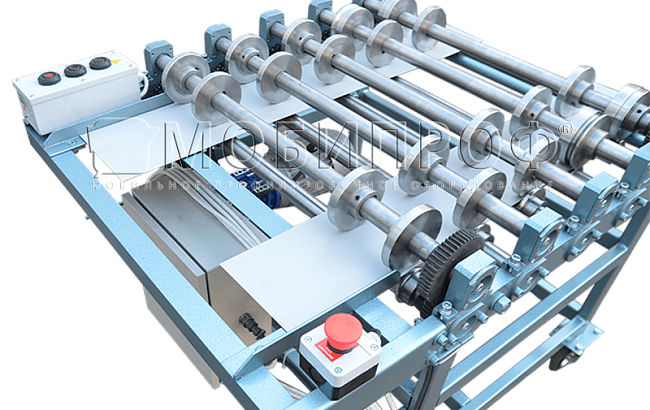

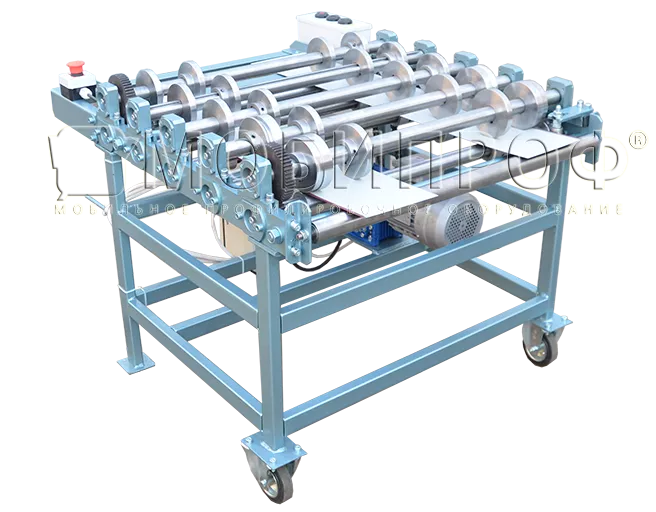

Roll forming machine Zv-05 is used for manufacture of a workpiece with turned edges using cold shaping method. The produced flat is a blank for subsequent manufacture of roof components and building facade.

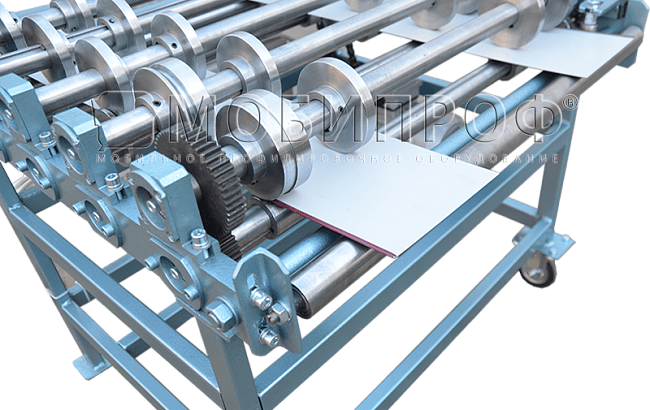

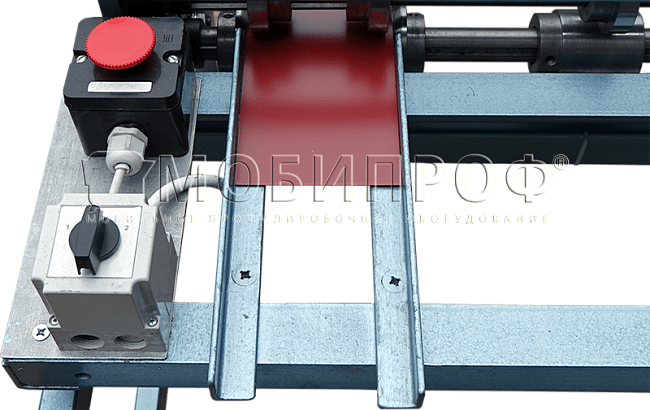

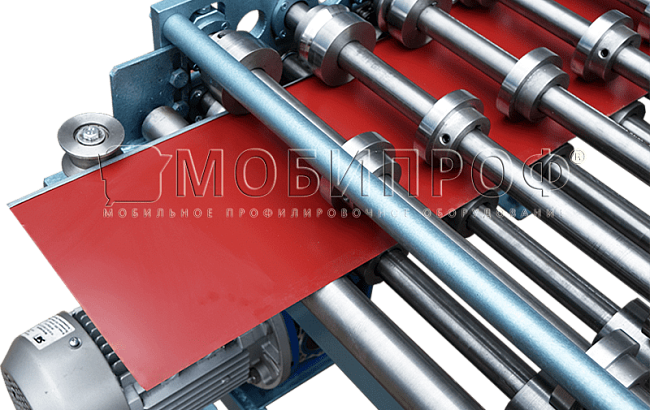

The machine advantage is the blank width adjustability. It is carried out by rolling first one side of the blank, and then the other side. The guide located on the entry table allows feed metal into the machine smoothly. The blank of the maximum possible width is rolled in one pass.

The machine can operate with copper, aluminium, zinc-titanium, galvanized steel, including that with polymer coating. The compact size and light weight allow carrying and using it easily not only in the shop, but also on a construction project.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

Advantages
  • flat width adjustability;

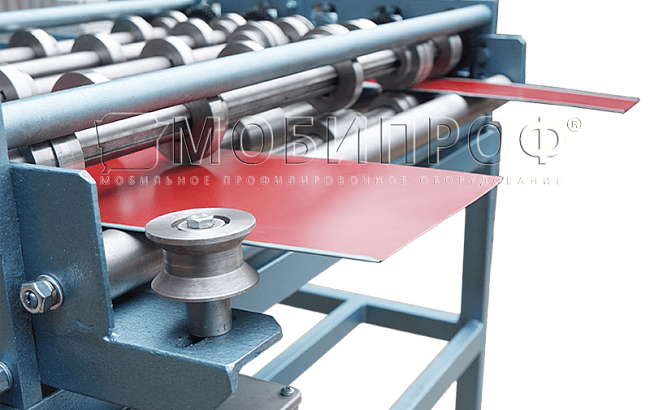

  • shaft for blank straightness adjustment;
  • compact size;
  • durable design;
  • low power consumption.
Specifications
Production speed, m/min up to 6
Soft steel thickness S235JR, mm 0,4-0,6
Maximum width of strip, mm 60-560
Width of workpiece with hem, mm 50-550
Drive power, kW 0,75
Supply voltage, V 380
Dimensions, LхWхH, mm 1050х840х750
Weight, kg 170
Standard and options
The machine is in the basic configuration, without additional equipment.
Options
For single-phase (220V) operation.
Video
Types of profiles

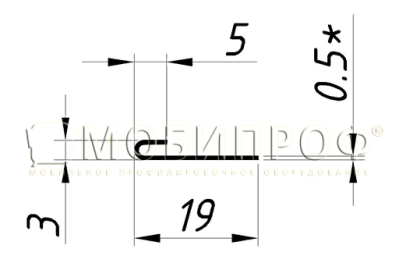

Strip width
24,5 mm

Profile width
19 mm
Zv-05.5х19
Strip profile
70 mm

Profile width
60 mm
Zv-05.60
Strip width
110-410 mm

Profile width
100-400 mm
Zv-05.400
Strip width
60-560 mm

Profile width
55-555 mm
Zv-05.600
