Standing seam roll forming machine SFP-700 KOMPACT

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Standard and options
Description

Standing seam roll forming machine SFP-700 COMPACT is a compact version of popular machine SFP-700 COMPACT. A distinctive feature of this model is compact size (absence of lower part of the frame) due to which the weight is lighter and the machine mobility is greater. The roof panels may be either with single, or with double standing seam of straight or trapezoidal form. The profile width adjusted stepwise by moving the shaping rollers. The roll formed panels may be of various lengths and they are rolled in one pass.

Due to lightweight and small size standing seam roll forming machine SFP-700 COMPACT is specially suitable for the roll-forming works on job sites (roof, attic). It reduces expenses on storage, transportation and lifting the panels to the roof, and it eliminates their damage, which improves the roof quality and appearance.

The roof panels roll formed on standing seam roll forming machine SFP-700 COMPACT feature higher quality, reliability and durability.

The machine operates with all roofing metal types: coiled and sheet steel, (galvanized steel, steel coated with copper, zinc, titanium, etc.). Six profiling mill stands with optimized configuration of shaping rollers combined with the last straightening mill stand ensures high quality of the produced roofing panels.

During operation on a job site, standing seam roll forming machine SFP-700 COMPACT serves up to two teams at the same time. To facilitate transportation and handling on site. To ensure the roofing worker’s safety and protect the shaping mechanism, the machine is equipped with a protective cover.

In order to buy SFP 700 COMPACT you need to leave a request on the website or call.

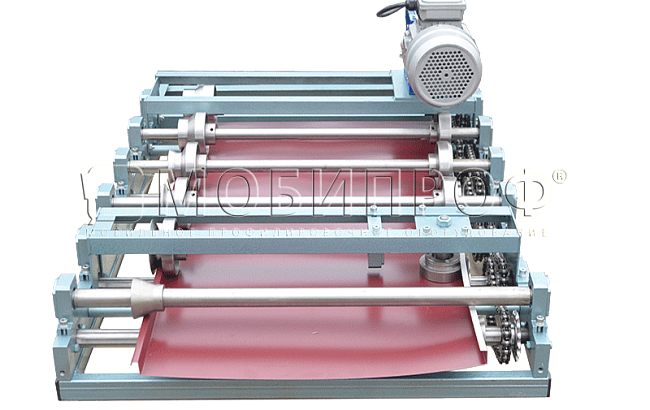

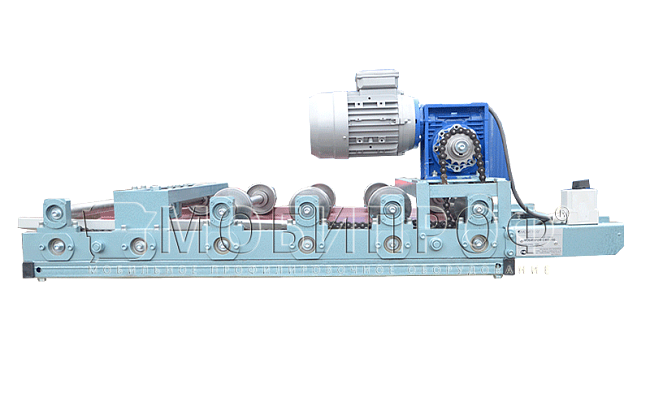

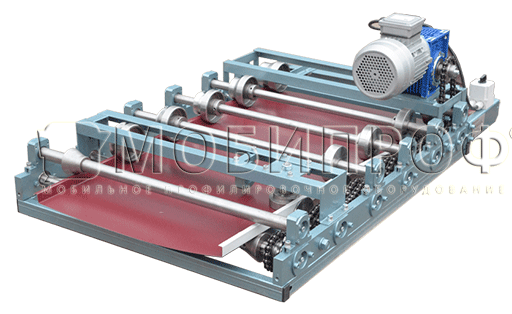

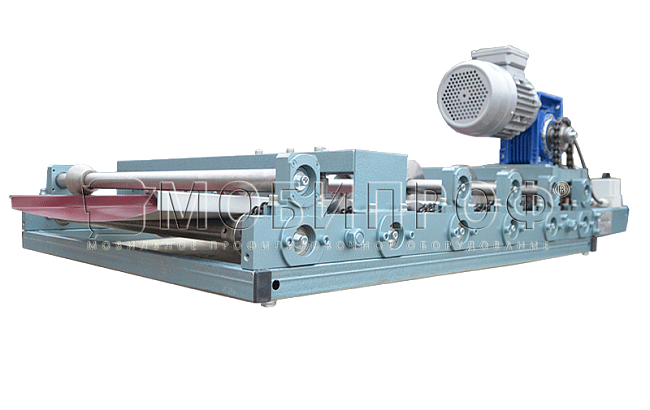

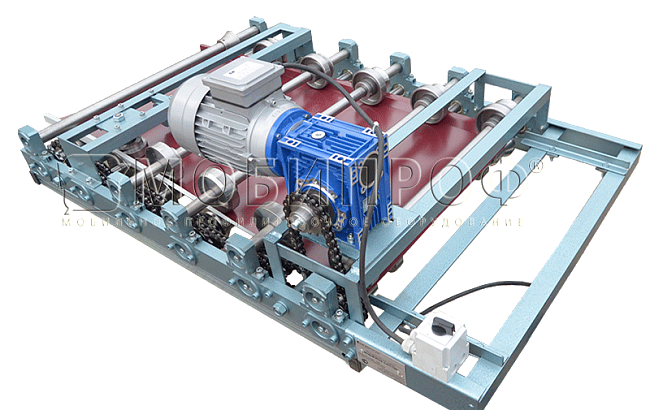

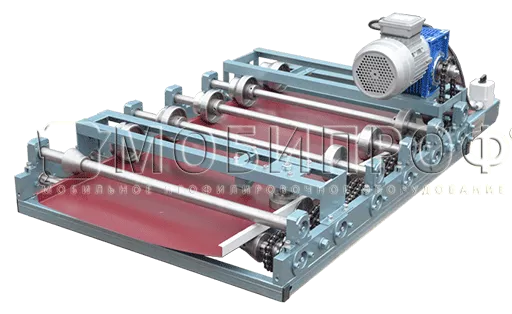

* On the photo, the machine is shown with additional equipment.

Advantages

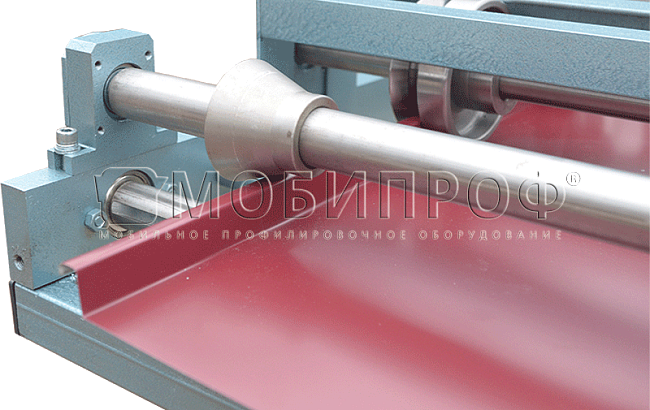

  • calibration mill stand at way out of the machine allow performing a quick fine-adjustment for necessary thickness and metal type;
  • possibility of installing additional bead rollers for half round or trapezoidal type of ribs;
  • it is possible to install an additional set for forming arch-shaped roofing patterns;
  • movable guides allow adjusting the seam size if required;
  • jointly treated bearing high rigidity, perfect parallelism and alignment of the shafts;

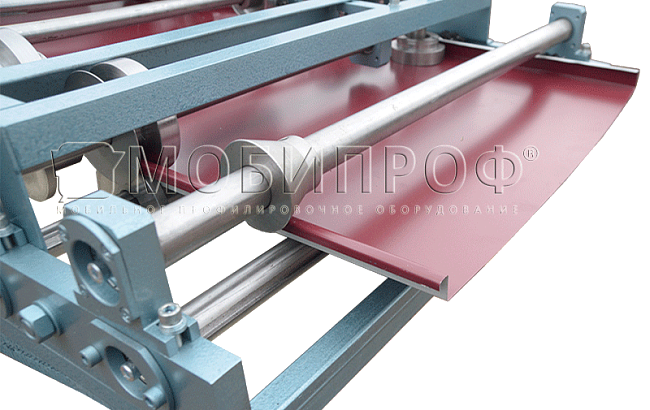

  • to support the center of the panel being rolled, the shaping mechanism is equipped with additional rollers;
  • it is ideal for use on a construction site due to its light weight and equipment overall dimensions;
  • affordable price, two-year warranty and lifetime service support by the manufacturer.
Specifications
Infeed width, mm 250-700
Soft steel thickness S235JR, mm 0,5-0,7
Lock height, mm 25
Operating speed, m/min 6,5
Drive power, kW 0,75
Supply voltage, V 380/3-Ph
Dimensions, LхWхH, mm 1450х870х500
Weight, kg 140
Standard and options
Options

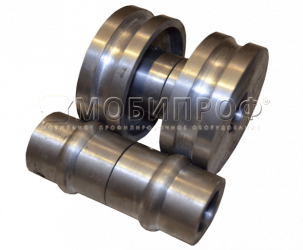

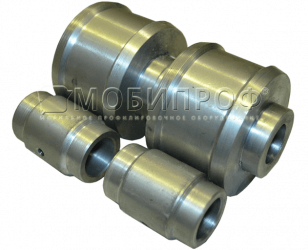

Set of embossing roller dies "half round"
Set of embossing roller dies "trapezoidal"

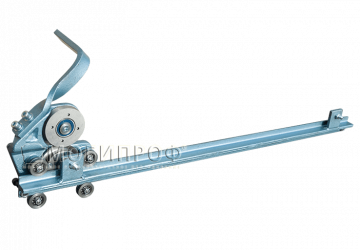

Manual transversal cutting before roll forming
Floor-standing metal decoiler HP-700
For single-phase (220V) operation.
Kit to operate with maximum steel thikness 0.7 mm
Manual with numerical display
Types of profiles
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock height
25 мм
Straight roof panel
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock Height
25 мм
Roof panel with "trapezoidal" type of rib
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock Height
25 мм
Roof panel with "half round" type of ribs
