Snap lock roll forming machine SFPZ

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Standard and options
Video
Description

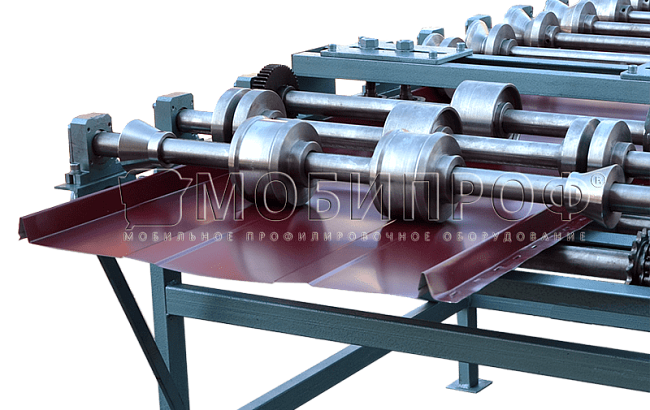

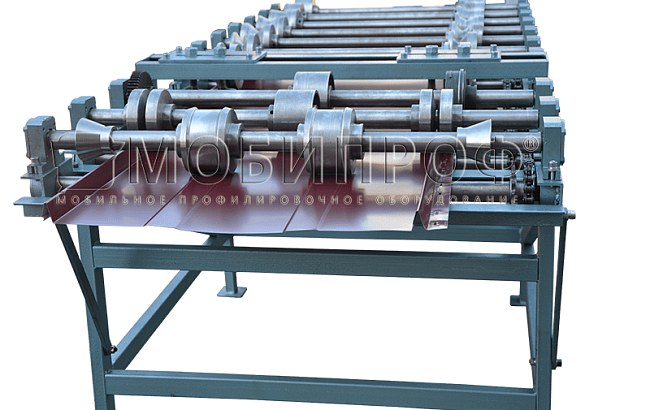

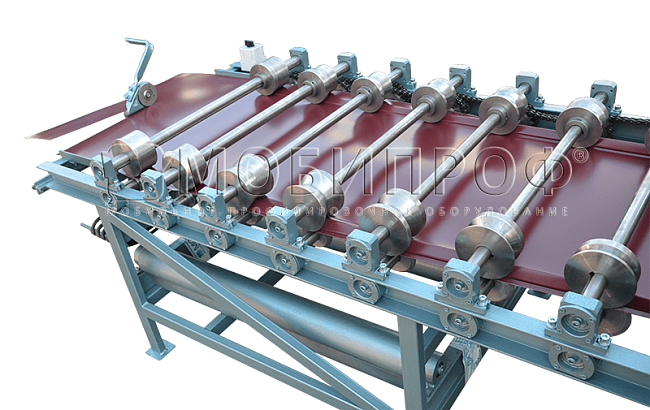

Roofing roll forming machine SFPZ produces roof panels with single snap lock seam for quick installation without special roofing tools of straight and trapezoidal form. The roofing machine operates with all roofing metal types (coiled and sheet steel, including that with polymer coating, copper, including patinated one, aluminium, and zinc titanium). The roofing panel width is adjusted stepwise.

The snap lock seam panels are indispensable for use on simple double-pitch roofs with pitch angle at least 15°. The machine allows producing roof panels of any length on a construction site as well as at a manufacturing facility.

Distinctive features of a snap lock seam:

  • simple and quick installation of a roofing panel without any special tools;
  • hidden mounting system;
  • allow for thermal expansion of the material.

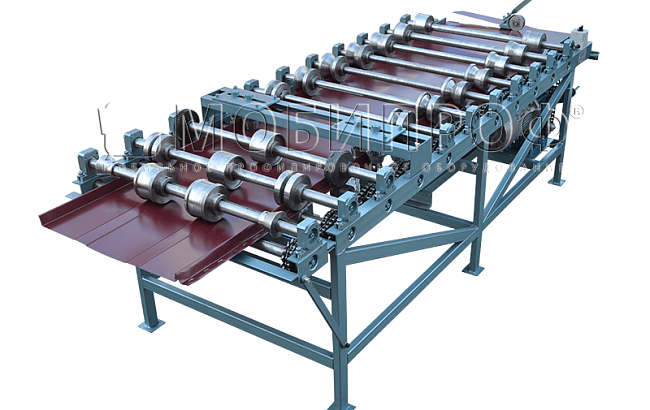

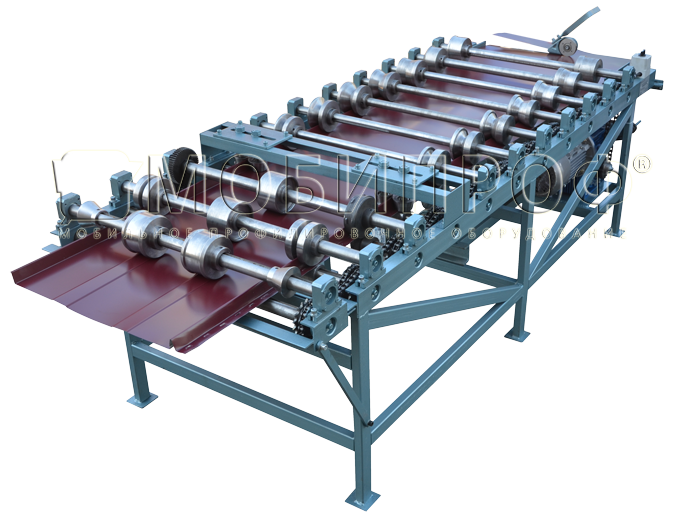

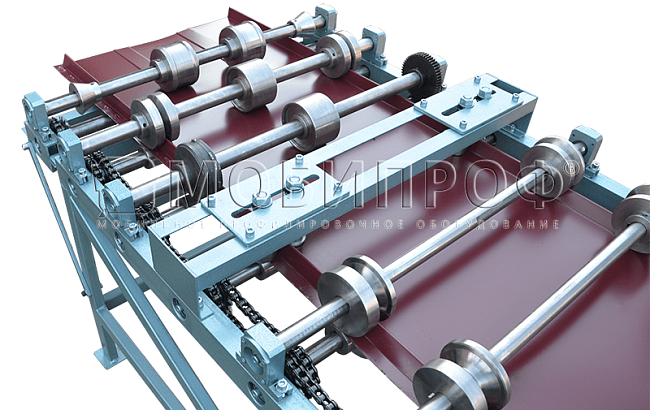

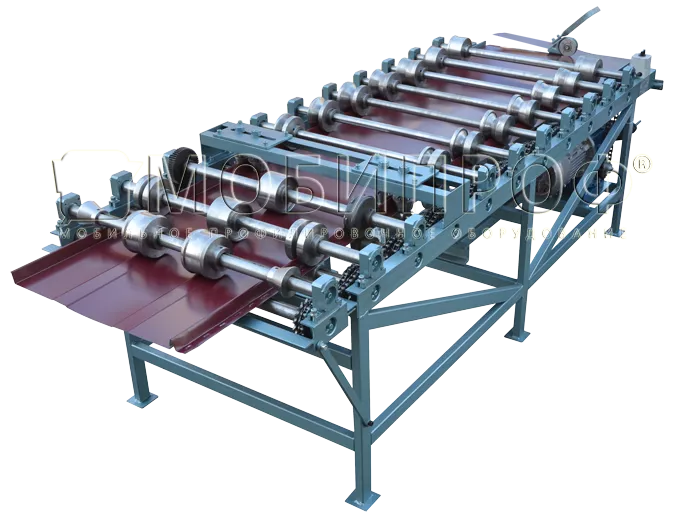

* On the photo, the machine is shown with additional equipment.

Advantages

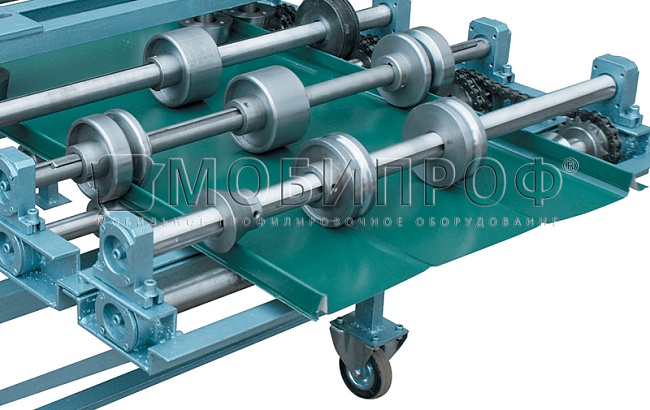

  • high quality of produced roof panel due to the use of 10 mils stand design;

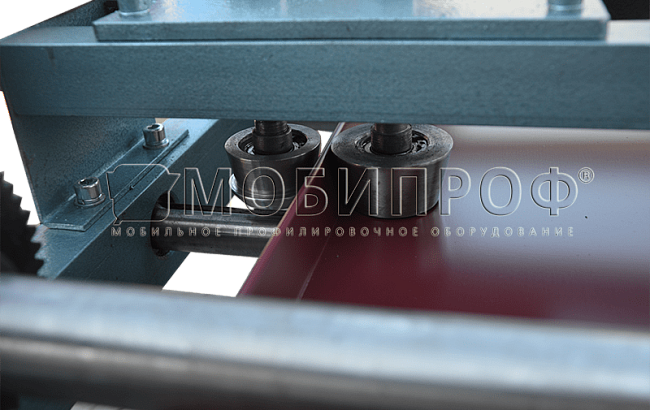

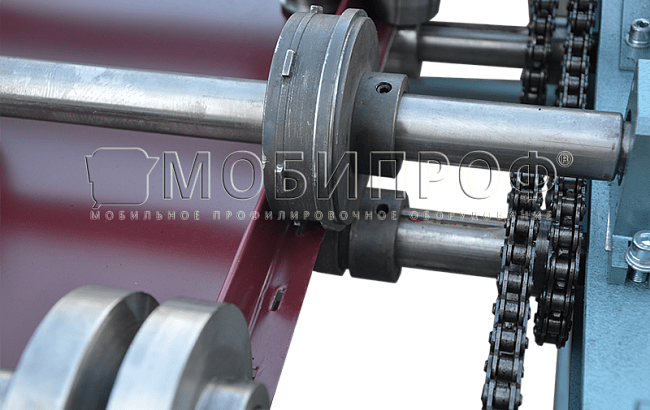

  • adjustment of the force of seam clamping with vertical rollers allows tuning to different metal type and thickness;

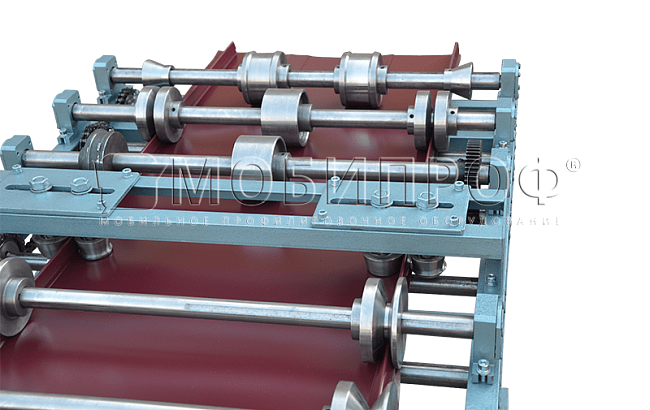

  • calibration mill stand at the end of the machine allow performing a fine tuning for necessary metal thickness and type;
  • hole punching on a panel for concealed fixing of the roofing picture;
  • possibility of installing additional bead rollers for half round or trapezoidal type of ribs.
Specifications
Infeed width, mm 250 - 625
Soft steel thickness S235JR, mm 0,5-0,7
Lock height, mm 32
Operating speed, m/min 6,5
Потребляемая мощность, кВт 1.5
Supply voltage, V 380
Dimensions, LхWхH, mm 2350х870х750
Weight, kg 310
Standard and options
Snap lock roll forming machine SFPZ
Options
Floor-standing metal decoiler HP-700

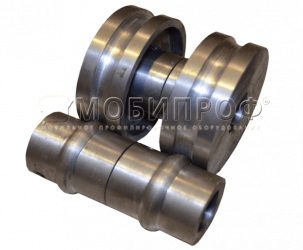

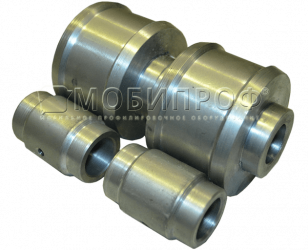

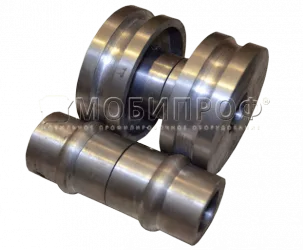

Set of embossing roller dies "half round" SFPZ

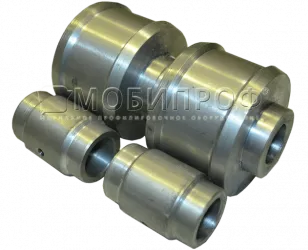

Set of embossing roller dies "trapezoidal" SFPZ
Variable-frequency inverter SFPZ
Manual with numerical display

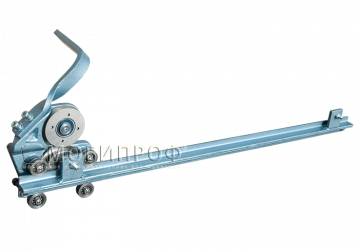

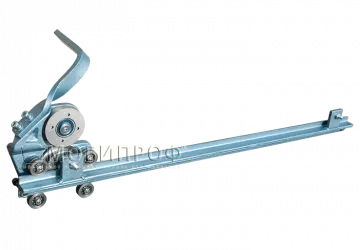

Manual transversal cutting before roll forming
Video
Types of profiles
Strip width
625 mm

Axial dimension
485 mm

Lock Height
32 mm

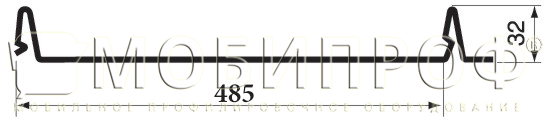

Roof panel snap lock
Strip width
625 mm

Axial dimension
485 mm

Lock Height
32 mm

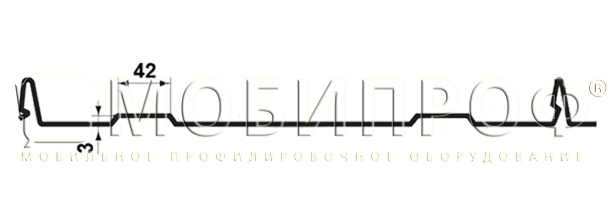

Roof panel snap lock with "trapezoidal" type of rib
Strip width
625 mm

Axial dimension
485 mm

Lock Height
32 mm
Roof panel snap lock with "half round" type of rib
