Decoilers
Floor-standing
Mobile
Double-support
Self-lifting
Open side
Floor-standing metal decoiler HP-700
Lightweight floor-standing decoiler MOBIPROF HP-700 designed for uncoiling rolls weighing up to 300 kg and up to 700 mm wide.

Specifications:
300 kg
Maximum load
700 mm
Coil width
any
Inner Ø of coil

On request
Floor-standing metal decoiler НР-1250
Lightweight floor-standing decoiler HP-1250 designed for uncoiling rolls weighing up to 300 kg and up to 1 250 mm wide.

Specifications:
300 kg
Maximum load
1 250 mm
Coil width
any
Inner Ø of coil

On request
Decoiler on wheels RM2S-625
Free movement of the decoiler is provided by four wheels with a brake. Self-centering mandrel for easy installation of coils.

Specifications:
2000 kg
Maximum load
625 mm
Coil width
400-580
Inner Ø of coil

On request
Decoiler on wheels with brakes RM2S
Free movement of the decoiler is provided by four wheels with a brake. Self-centering mandrel for easy installation of coils.

Specifications:
2000 kg
Maximum load
1250 mm
Coil width
400-580 mm
Inner Ø of coil

On request
Manual double-support coil decoiler RM-1250
To work with coils of different widths, the crosspieces can be set at any point of the shaft. To secure the roll, each special support on both crosspieces is expanded.

Specifications:
8 000 kg
Maximum load
1250 mm
Coil width
480-620 mm
Inner Ø of coil

89 000 rub.
price
Manual double-support coil decoiler RM-1500
To work with coils of different widths up to 1500 mm, the crosspieces can be set at any point of the shaft. To secure the roll, each special support on both crosspieces is expanded.

Specifications:
8 000 kg
Maximum load
1500 mm
Coil width
480-620 mm
Inner Ø of coil

105 000 rub.
price
Manual double-support decoiler RMSC-1250
Self centering coil holder is easy to install and fix inside of the metal coil. It is based on a two-bearing double-support frame.

Specifications:
8000 kg
Maximum load
1250 mm
Coil width
415-620
Inner Ø of coil

On request
Double-support decoiler RMSC-1250E/NC
Motorized double-support decoiler RMSC-1250E/NC. Is equipped with a reversible gear motor, 220 V electric cabinet and a 3-button remote operation panel.

Specifications:
8000 kg
Maximum load
1250 mm
Coil width
415-620 mm
Inner Ø of coil

On request
Self-lifting roll decoiler RMS-1250
The self-lifting mechanism of the metal decoiler allows using the decoiler both on industrial facilities, and on small construction sites where there are no lifting devices.

Specifications:
8000 kg
Maximum load
1250 mm
Coil width
480-620 mm
Inner Ø of coil

On request
Non-powered cantilever decoiler KR-2,0
Designed for uncoiling a metal strip coiled in a 2 000 kg roll and up to 350 mm wide. The Expanding of the support bars synchronously by rotation of the handwheel. Equipped with a system to prevent unwinding by inertia.

Specifications:
2000 kg
Maximum load
10-350 mm
Coil width
380-630 mm
Inner Ø of coil

On request
Motorized cantilever decoiler KR-2,0 NC
Motorized cantilever decoiler KR-2,0-NC is designed for uncoiling a band up to 350 mm wide and a roll weighing up to 2 000 kg. Equipped with a non-contact sensor to control the sagging of the strip.

Specifications:
2000 kg
Maximum load
10-350 mm
Coil width
380-630 mm
Inner Ø of coil

On request
Powered cantilever decoiler KR-5,0
Powered cantilever decoiler KR-5,0 is designed for uncoiling up to 1250 mm wide and a coil weght up to 5 000 kg. Equipped with a non-contact sensor to control the sagging of the strip.

Specifications:
5000 kg
Maximum load
1250 mm
Coil width
480-630 mm
Inner Ø of coil

On request
Powered cantilever decoiler KR-7,5
Powered cantilever decoiler KR-7,5 is designed for uncoiling up to 1250 mm wide and a coil weght up to 7 500 kg.

Specifications:
7500 kg
Maximum load
1250 mm
Coil width
550-650 mm
Inner Ø of coil

On request
Powered cantilever decoiler KR-10
Powered cantilever decoiler KR-10 is designed for uncoiling up to 1250 mm wide and a coil weght up to 10 000 kg.

Specifications:
10 000 kg
Maximum load
1250 mm
Coil width
550-650
Inner Ø of coil

On request
Manual slitting machine SPR-1250/3R
Light manual cutting machine, useful slitting width 1250 mm, 0,7mm, manual transversal cut by extra roller shear.

Specifications:
5 m/min
Speed
0,35 - 0,8 mm
Soft steel thikness
up to 1250 mm
Max.coil width

On request
Light semi-electric slitting and cutting unit SPR-1250/3-A
Light semi-electric cutting machine, useful sleeting width 1250 mm, 0,7mm, electric uncoiling, manual transversal cut by extra roller shear.

Specifications:
6 m/min
Speed
0,35-0,8 mm
Soft steel thikness
1250 mm
Max. coil width

On request
Semi-electric slitting and cutting unit SPR-1250/5-A
Semi-electric slitting and cutting machine, useful slitting width 1250 mm, up to 1.5 mm, electric uncoiling, manual transversal cut by extra roller shear.

Specifications:
10 m/min
Speed
0,3-1,5 mm
Max. thickness
1250 mm
Max. coil width

On request
Semi-electric slitting and cutting unit SPR-1250/10-A
For slitting and length cutting of sheet and coiled metal. Electric uncoiling, 10 sets of disc cutters, manual transversal cut by extra roller shear.

Specifications:
10 m/min
Speed
0,35-1,5 mm
Soft steel thikness
1250 mm
Max. coil width

On request
Compact cutting line with automatic SPPR-1250/5-NC
Cutting and slitting line with a numerical control, as standart 5 sets of cutter blades, transversal roller shear.

Specifications:
10 m/min
Speed
0,35-1,5 mm
Soft steel capacity
1250 mm
Max. coil width

On request
Line for Metal Palisade Pales production
“Metal picket fence” series machines are designed for production of metal “Palisade Pales” wich is the main components of palisade fencing.

Specifications:
7 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
1.5 kW
Drive power, kW

On request

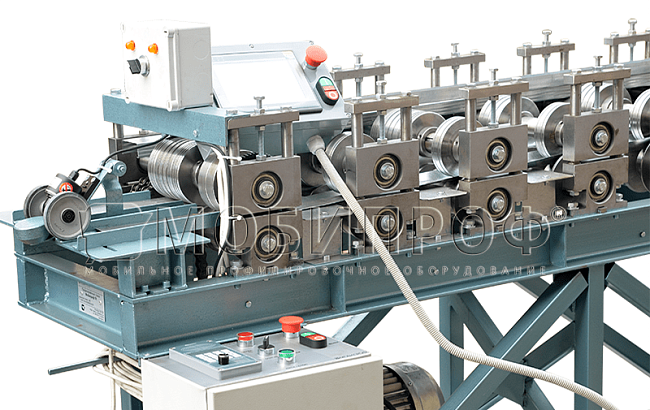

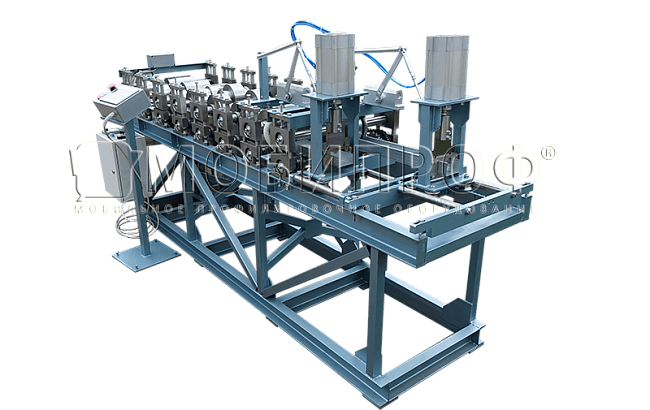

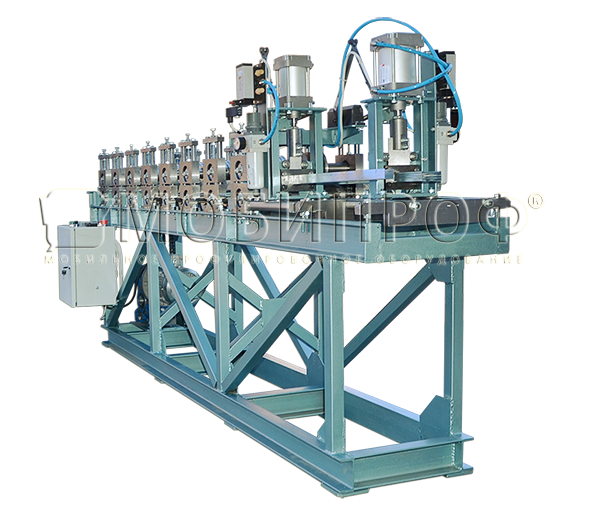

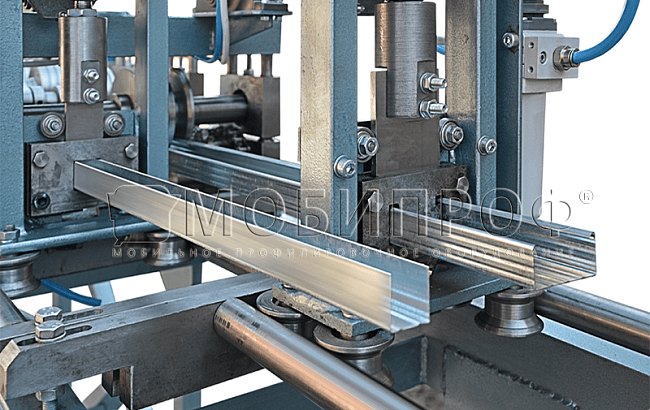

Mobile line for CD and UD gypsum board profile production
Roll forming machines is designed for producing Knauf profiles, which are used to construct a metal frame to provide support for plasterboard panels.

Specifications:
20 m/min
Production speed
0,4-0,7 mm
Soft steel capacity
2,2 kW
Drive power

On request
Gutter machines
Line is intended for production of a half-round or shaped gutters from thin-sheet galvanized steel 0,4-0,6 mm of thickness with plastisol or pural coatings. Gutter is one of the elements of the rain ware system responsible for draining rainwater and meltwater from the roofs of buildings.

Specifications:
10 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
3,7 kW
Drive power

On request
Line for producing screed strip (spackling angle)
Roll forming machine MCh-10х23.05 is designed to produced a “screed strip/spackling angle” profile used for plastering of surfaces.

Specifications:
10 m/min
Production speed
0,4-0,5 mm
Soft steel capacity
1,5 kW
Drive power

On request
Line for producing “Plastering angle” profile
Roll forming machine Mobiprof YP-23x23.1xR1.05 is designed for producing “Plastering angle” profile used for plastering of surfaces.

Specifications:
10 m/min
Production speed
0,4-0,5 mm
Soft steel capacity
1,5 kW
Drive power

On request
Omega channel rollforming machine
SPO roll forming machines are designed for production of omega- (furring) cannels.

Specifications:
15 m/min
Production speed
2,0 mm
Soft steel capacity
2,2 kW
Drive power

On request
С- or U- chanels roll forming machine
SPP and SPS series roll forming machines are designed for production of U- and C- channels from blancs required width or coiled strip with maximum thickness 2,0 mm.

Specifications:
10 m/min
Production speed
2,0 mm
Soft steel capacity
3,5 kW
Drive power

On request
Line for producing L- shaped profiles
YP series shaping machines are designed to produce L- shaped profiles (angles).

Specifications:
10 m/min
Production speed
2,0 mm
Soft steel capacity
2,2 kW
Drive power

On request
Roll forming machine to produce Z- profile
ZP series shaping machines are designed to produce Z- shaped profile from galvanized steel сapacity up to 1.5 mm.

Specifications:
10 m/min
Production speed
0,5-1,5 mm
Soft steel capacity
2,2 kW
Drive power

On request
Garden bed guarding roll forming machine
Mobiprof SPS-225x20-80x80.05 roll forming machine is designed to produce C- chanel, which is used as a garden seedbed fences posts.

Specifications:
up to 15 m/min
Production speed
0,5 mm
Soft steel capacity
3,0 kW
Drive power

On request
Wall panel machines
SO series roll forming machines are designed to produce metal siding from light gauge galvanized steel with polymer coating: polyester, plastisol.

Specifications:
10 m/min
Production speed
0,4-0,7 mm
Soft steel capacity
2,2 kW
Drive power

On request
T- purlin roll forming machine
TP series roll forming machines are designed to produce T- channels.

Specifications:
10 m/min
Production speed
0,5-1,5 mm
Soft steel capacity
3,0 kW
Drive power

On request
Line for heat spreading plate shapes
The machine is intended for profiling heat spreading plates applied for construction of heating floor.

Specifications:
7 m/min
Production speed
0,4-0,8 mm
Soft steel capacity
0,75 kW
Drive power

On request
Drift eliminator roll former
Roll forming machine VlnP.R19-39x205.Зv.07 is intended for profiling of “Drift eliminator” profile from thin-sheet galvanized steel up to 0,7 mm of thickness.

Specifications:
10 m/min
Production speed
0,45-0,7 mm
Soft steel capacity
3,0 kW
Drive power

On request
Ridge cap roll former
The machines are designed for producing “ridge cap” or “neck cap” profiles of 0.4 to 0.6 mm steel with different types of polymer coating.

Specifications:
7 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
1,5 kW
Drive power

On request
Zv-0,5 Flat hem roll former
Roll forming machine is intended for rolling of edges from thin-sheet galvanized steel 0,4-0,5 mm of thickness. Rolling is proceed in two passes - first one side, then the other.

Specifications:
6 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
0,75 kW
Drive power

On request
Zv.R Flat hem roll former
Dual sided hemming machine is intended for rolling of edges in a single pass from thin-sheet galvanized steel 0,4-0,5 mm of thickness. The machine with stepless width adjustment from 90 mm to 690 mm conveniently via handwheel.

Specifications:
7 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
0,75 kW
Drive power

On request
“Fencing blinds” roll former
“Fencing blinds” profile roll forming machine is intended to produce metall profile (lamellas) used for “Blinds” type fence construction.

Specifications:
10 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
3,0 kW
Drive power

On request
Window trim roll former
PK series shaping machines are designed for production of “Window trim” profile made of coiled galvanized steel or steel with polymer coating, 0.4 to 0.6 mm thick. The shape rolling is performed in two passes - one side at a time.

Specifications:
6,5 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
0,75 kW
Drive power

On request
Roll forming machine for "Window drip cap" profile
PK.R series roll forming machines are equiped with stepless width adjustment and the machines are intended for profiling “Window drip cap” profile in a single pass.

Specifications:
7 m/min
Production speed
0,4-0,8 mm
Soft steel capacity
0,75 kW
Drive power

On request
Roll froming machine for decorative profile “Cover”
The machine produces decorative profile “Cover” which is used for covering the aluminium clamping shape of glass structures.

Specifications:
10 m/min
Production speed
0,7 mm
Soft steel capacity
2,2
Drive power

On request
Shaped rings roll forming machine
MOBIPROF CUU15х18-74.10 roll forming machine is designed to produce metal shaped rings from galvanized steel сapacity up to 1,0 mm.

Specifications:
10 m/min
Production speed
1,0 mm
Soft steel capacity
0,75 kW
Drive power

On request
Shaped rings roll forming machine CUU-K420
CUU-K420 roll forming machine is designed to produce metal "shaped rings" profile wich is used as garbage chute of cylindrical channel of the Sandwich-type.

Specifications:
10 m/min
Production speed
1,5 mm
Soft steel capacity
up to 6 kW
Drive power

On request
Metall plate lining roll former
Metal plate lining roll forming machine is intend to produce “metal cover” profile which is used for production “Sandwich” type panels.

Specifications:
6 m/min
Production speed
0,4-0,7 mm
Soft steel capacity
1200 mm
Infeed width

On request
Curtain rod blinds roll former
Roll forming machines for “Curtain rod blinds " profile, for production of special shapes applied in design of horizontal aluminium blinds.

Specifications:
10 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
1,5 kW
Drive power

On request
Pvc windows reinforcements
The line is intended for profiling of open and closed profiles for armoring of items from PVC from thin-sheet of galvanized steel 1,5-2,0 mm of thickness.

Specifications:
10 m/min
Production speed
1,0-2,0 mm
Soft steel capacity
2,2 kW
Drive power

On request
Line for growing gutter production
TL series roll forming machines for producing growing gutter shapes, applied in a greenhouse facility for growing crops using hydroponics technology.

Specifications:
10 m/min
Production speed
0,7 mm
Soft steel capacity
3,0 kW
Drive power

On request
Folding machine LTB-2000/0,8
Is designed for manufacturing the whole range of products for building roof and faces made of up to 0.8 mm steel.

Specifications:
2040 mm
Folding length
0,8 mm
Capacity zinc / steel
155°
Max folding angel

On request
Folding machine LTB-2500/0,8
Is designed for manufacturing the whole range of products for building roof and faces made of up to 0.8 mm steel.

Specifications:
2540 mm
Folding length
0,8 mm
Capacity zinc / steel
155°
Max folding angel

On request
Double standing seam machine SFP-700
It has high versatility and mobility. Produces roofing panels with both single and double standing seam at the job site.

Specifications:
250-700 mm
Infeed width
0.45-0.7 mm
Galvanized steel
25 mm
Lock height

от 185 000 rub.
price
Double standing seam machine SFP-700 LITE
The budget version of the roofing machine SFP-700, is popular with professional roofers for many years. The machine does not have the 6th сalibration mill stand.

Specifications:
250-700 mm
Infeed width
0,45 - 0,7 mm
Galvanized steel
25 mm
Lock height

On request
Standing seam roll forming machine SFP-700 KOMPACT
Mobile, compact and lightweight, suitable for frequent relocations. Produces roofing panels with both single and double standing seam at the job site.

Specifications:
250-700 mm
Infeed width
0,5-0,7 mm
Galvanized steel
25 mm
Lock height

от 188 000 rub.
price
Standing seam machine SFPR
The machine with stepless width adjustment from 320 mm to 700 mm conveniently via handwheel. SFPR allows to produce high quality roof panels with double or single standing seam

Specifications:
320-700 mm
Infeed width
0,45 - 0,7 mm
Galvanized steel
25 mm
Lock height

от 276 000 rub.
price
Standing seam roll forming machine SFPR-NC
Standing seam roll forming machine SFPR-NC with numerical control produces roofing panels with both single and double standing seam at the job site.

Specifications:
250-250 mm
Infeed width
0,45 - 0,6 mm
Galvanized steel
25 mm
Lock height

от 561 000 rub.
price
Standing seam rollforming machine SFP-1250
Universal machine for onsite work to produce double standing seam profiles 25 from blanks or cut lengths in a single pass with width 1250 mm.

Specifications:
1250 mm
Infeed width
0,45 - 0,7 mm
Galvanized steel
25 mm
Lock height

от 230 000 rub.
price
Snap lock roll forming machine SFPZ
Produces roofing panels with single snap lock seam, the distinctive features of which are simple and quick installation of the panel without the use of special tools, hidden mounting system, allow for thermal expansion of the material.

Specifications:
250 - 625 mm
Infeed width
0,5 - 0,7 mm
Galvanized steel
32 mm
Lock height

от 359 000 rub.
price
Set of hand seamers
The steel lock hand seamer manufactured by MOBIPROF are designed for closing of double standing seam one by one in two steps.

Specifications:
0,4-0,7 mm
Max. thickness
25 mm
Lock height
220 mm
Size

14 000 rub.
price
Hand seaming tool with bronze plates and seam hooks
Hand tool with bronze plates and seam hooks. It is optimal for work on metal with polymeric coating and copper.

Specifications:
0,4-0,6 mm
Max. thickness
25 mm
Lock height
220 mm
Size

20 000 rub.
price
Semi-automatic seaming tool
Semi-automatic seaming tool used for closing locks on a double standing seam roofing panels.

Specifications:
0,4-0,6 m
Max. thickness
25 mm
Lock height
5,5 kg
Weight

от 23 500 rub.
price
Seaming machine FZM
Universal seaming machine unit FZM for seaming angular and double standing seams with a single pass.

Specifications:
0,45-0,7 mm
Galvanized steel
25 mm
Lock height
5 m/min
Operating speed, m/min

123 000 rub.
price
Manual swaging-beading machines ZRM-0,8
Flanging, crimping, rolling rifts. Manual drive, 4 pairs of rollers.

Specifications:
0,8 mm
Capacity Steel S235JR
50 mm
Vertical distance
180 mm
Throat depth

On request
Electric swaging-beading machine ZEM-0,8
Flanging, crimping, rolling rifts. Reversible electric drive control by simple pedal, 4 pairs of rollers.

Specifications:
0,8 mm
Capacity Steel S235JR
50 mm
Vertical distance
180 mm
Throat depth

On request
Lock sem closing machine FOS.R-1300/0,8
Is designed to lock sem closing machine during production of air ducts and rain water systems.

Specifications:
0,8 mm
Max. sheet thikness
1300 mm
Operation length
2500 mm
Max. length of workpiece

On request
Lock sem closing machine FOS-1300/0,8
Is designed to lock sem closing machine during production of air ducts and rain water systems. Reversible electric drive control by simple pedal.

Specifications:
0,8 mm
Max. sheet thikness
1300 mm
Operation length
2500 mm
Max. length of workpiece

0 rub.
price
Gutter forming machine
Equipment is intended for production of a gutter from thin-sheet galvanized steel 0,4-0,6 mm of thickness with plastisol or pural coatings. Gutter is one of the elements of the rain ware system responsible for draining rainwater and meltwater from the roofs of buildings.

Specifications:
10 m/min
Production speed
0,4-0,6 mm
Soft steel capacity
3,7 kW
Drive power

On request
Заполните поля
ФИО
Телефон
Ваш вопрос, комментарий

Mobile line for CD and UD gypsum board profile production

Roll former for producing Knauf profiles
Double stream profile producing
C- and U- chanels
Сalibration mill stand
Allow performing a quick fine-adjustment for necessary thickness and metal type.
Heavy duty bearing supports
Maintenance-free axle bearing supports.
Movable entry guides
To adjust the width of the incoming strip.
Free delivery to the TC
Description
Advantages
Specifications
Description

The GK series machine is intended for profiling of CD and UD profile from thin-sheet galvanized steel 0,4-0,7 mm of thickness. Either strips of some width, or flats of the same width and desired length are used as blanks. It manufacture standard shapes CD 60х27 and UD 28х27, the blank width is 123 mm and 81 mm.

Plasterboard profiles roll forming line includes a roll forming module, a pneumatic flying shear for transversal cutting after rolling, and numeric control system (NC). Optional operator touchpad for NC makes the process of parameter entry and monitoring much easier, and allows entering into the machine memory up to 10 different production programs (length and quantity). In addition, the machine can be equipped with a notching unit 60х27, and flying hole punching device 28х27.

When rolling shapes from flats of the required width and length the guillotine and NC are unnecessary, which reduces the gypsum plasterboard shaping equipment cost, the capacity being reduced accordingly. One person is necessary when operating with a roll. The operator engages the flat, sets the operation mode for the control system (length, quantity of items and speed). The “flying cut” device allows increasing the automatic shape production line capacity by 25-30% as compared with stationary cut and by 50% as compared with the machine without the control system, thus decreasing the cost of produced items and making the shape for gypsum plasterboard a very promising business.

The excellence of final products is ensured with automatic control system and monitoring of master schedule exactitude.

We can also manufacture custom-built machines for plasterboard profiles.

Plasterboard profile roll forming line versions:
  • CD 50х50, UD 50х40;
  • CD 75х50, UD 75х40;
  • CD 100х50, UD 100х40.

* On the photo, the GK series machine shown with optional equipment.

Print
Advantages
  • double stream profile producing (Celing and U- chanels );
  • calibration mill stand for fine-adjustment for necessary thickness and metal type;
  • heavy duty bearing supports;
  • adjustable entry guides;
  • unlimited length of produced shapes;
  • simplicity and reliability of process design;
  • light weight and small dimensions of the machine.
Specifications
Production speed, m/min up to 20
Soft steel thickness S235JR, mm 0,4-0,7
Drive power, kW 2,2
Supply voltage, V 380 (220 NC)
Dimensions, LхWхH, mm depends on the type of profile
Weight, kg depends on the type of profile
Types of profiles
Strip width
GK 60x27
123 mm

Strip width
GK 27x28
81 mm
GK 60х27 и GK 28х27
Strip width
GK 50x50
153 mm

Strip width
GK 50x30
110 mm
GK 50х50 и GK 50х30
Strip width
GK 75x50
182 мм

Strip width
GK 75x40
152 мм
GK 75х50 и GK 75х40
Strip width
GK 100x50
207 mm

Strip width
GK 100x40
177 mm
GK 100х50 и GK 100х40
Photo and video
Related products
Delivery geography
Fill in the fields
Full name
Phone
E-mail
Your question, comment
