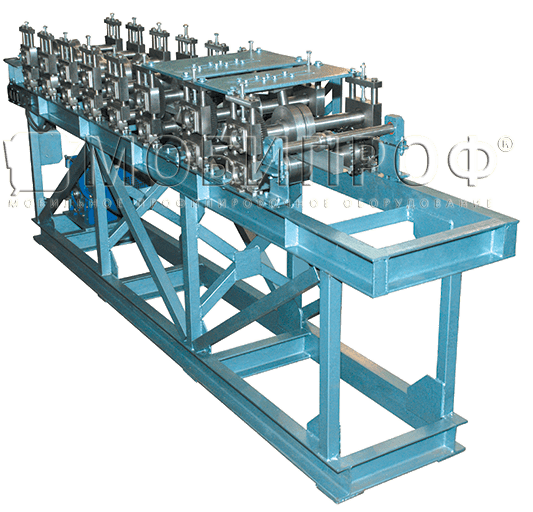

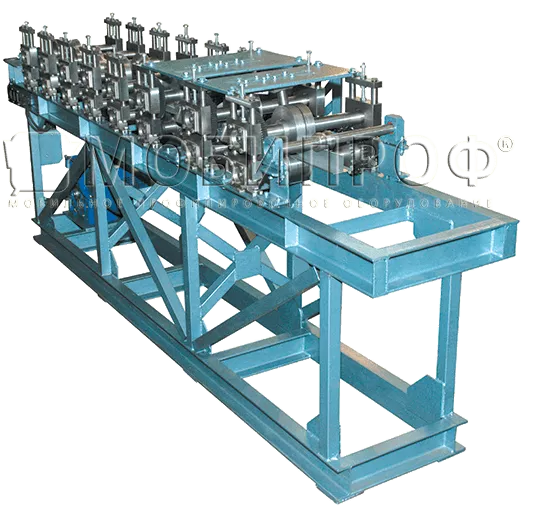

T- purlin roll forming machine

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

The line is intended for profiling of T-channels from thin-sheet galvanized steel from 1,5 to 3,0 mm of thickness. Application of vertical calibration mill stand in the design allows not only performing quick readjustment of the machine for a new metal type and thickness, but also to significantly reduce its overall dimensions. The machine is equally good in rolling shapes both of galvanized and black, and stainless steel.

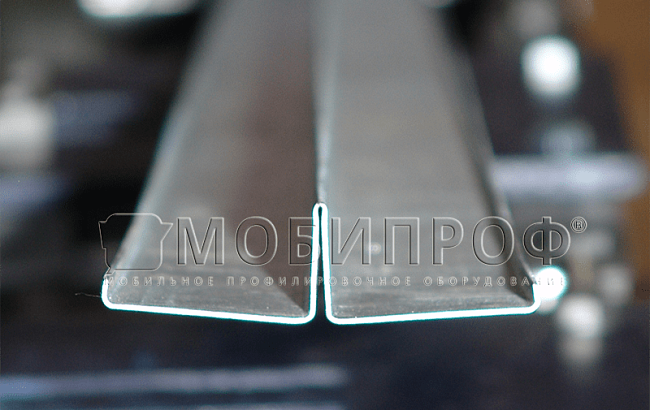

Т-channels is used in framework systems of ventilated building facade.

For production of profiles made of strips (coil) the roll forming machine can be optionally equipped with a shaped guillotine and numeric control (NC) allowing to produce batches of profiles of the desired length accurate within 1 mm. The guillotine performs wasteless cut, decreasing the raw material cost. The operator touchpad makes the process of parameter entry and monitoring much easier, and allows entering into the memory up to 10 different operation modes.

Shape blanks shall have specified width and be pre-cut into workpiece of required length or coiled into a roll (strips).

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

Advantages

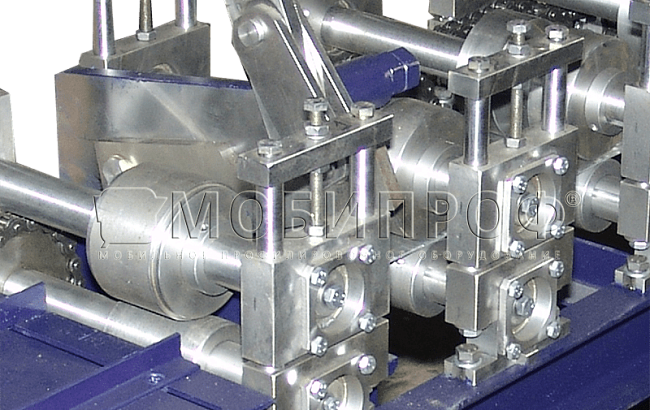

  • calibration mill stand for fine-adjustment for necessary thickness and metal type;

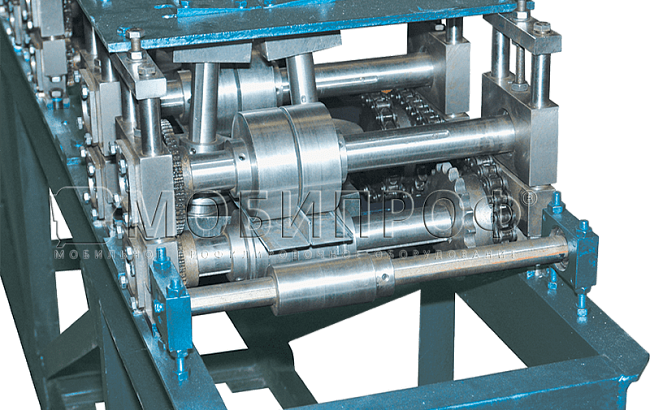

  • the optimized configuration of forming rolls for high-quality rolling of all metal types;

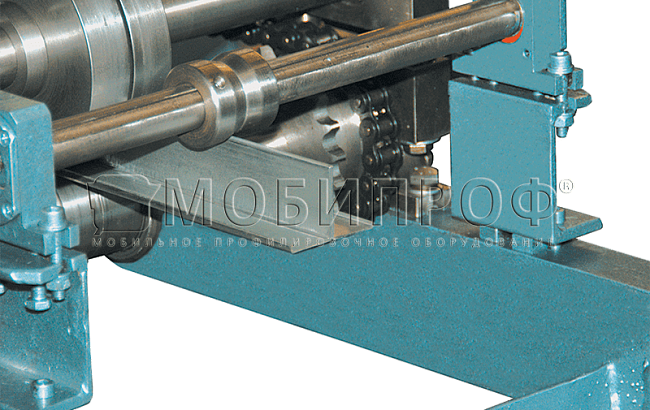

  • equiped with additional gear wheels and side idle rollers for provision of shape rolling and ideal configuration;

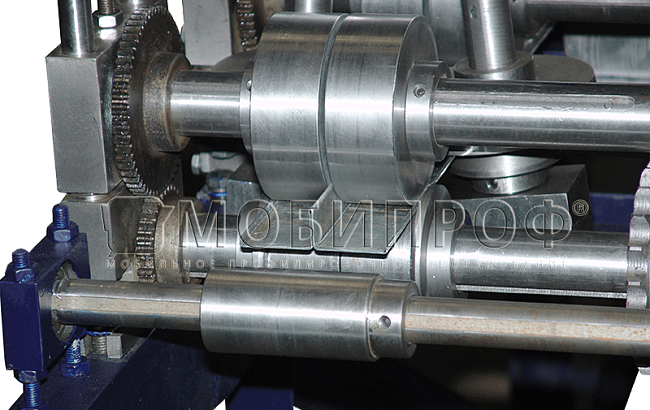

  • wear-resistant hardened rollers made of alloyed structural steel;
  • simple and reliable design.
Specifications
Production speed, m/min up to 10
Soft steel thickness S235JR, mm 0,5-1,5
Maximum width of strip, mm up to 200
Drive power, kW 0,75-2,2
Supply voltage, V 380 (220 NC)
Dimensions, LхWхH, mm depends on the type of profile
Weight, kg depends on the type of profile
Video
Types of profiles

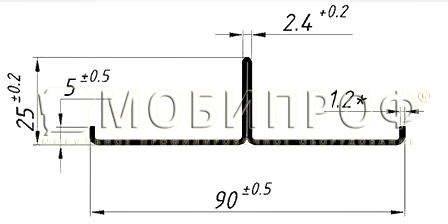

Strip width
140 mm

Profile width
90х25 mm
TP.25.12

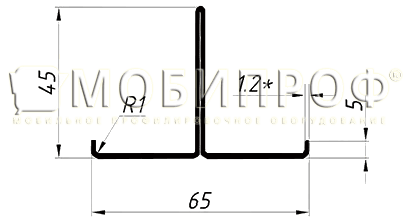

Strip width
156 mm

Profile width
65х45 mm
TP.45.12
