Designed for uncoiling a metal strip coiled in a 2 000 kg roll and up to 350 mm wide. The Expanding of the support bars synchronously by rotation of the handwheel. Equipped with a system to prevent unwinding by inertia.
Line is intended for production of a half-round or shaped gutters from thin-sheet galvanized steel 0,4-0,6 mm of thickness with plastisol or pural coatings. Gutter is one of the elements of the rain ware system responsible for draining rainwater and meltwater from the roofs of buildings.
Dual sided hemming machine is intended for rolling of edges in a single pass from thin-sheet galvanized steel 0,4-0,5 mm of thickness. The machine with stepless width adjustment from 90 mm to 690 mm conveniently via handwheel.
PK series shaping machines are designed for production of “Window trim” profile made of coiled galvanized steel or steel with polymer coating, 0.4 to 0.6 mm thick. The shape rolling is performed in two passes - one side at a time.
Produces roofing panels with single snap lock seam, the distinctive features of which are simple and quick installation of the panel without the use of special tools, hidden mounting system, allow for thermal expansion of the material.
Equipment is intended for production of a gutter from thin-sheet galvanized steel 0,4-0,6 mm of thickness with plastisol or pural coatings. Gutter is one of the elements of the rain ware system responsible for draining rainwater and meltwater from the roofs of buildings.

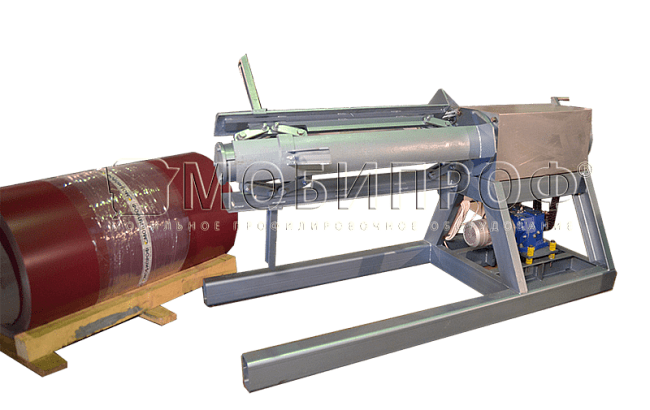

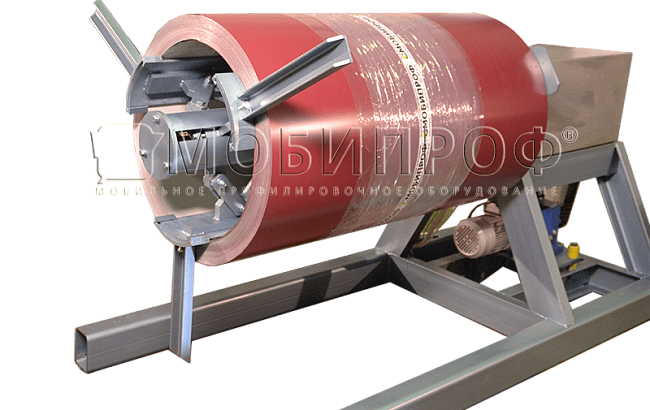

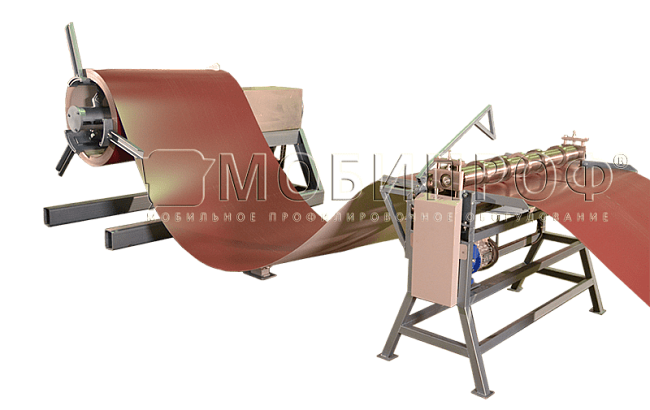

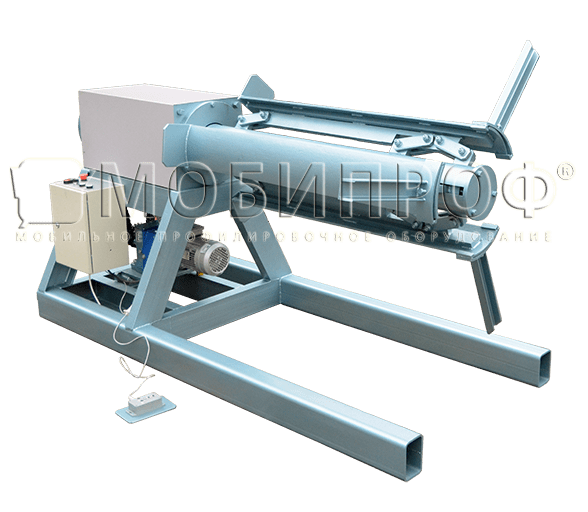

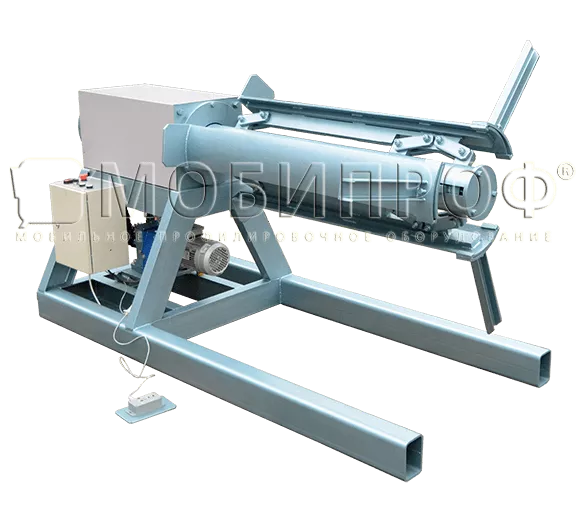

Powered cantilever decoiler KR-5,0 is designed for uncoiling a 1250 mm wide roll weighing up to 5 000 kg. It is used in pattern cutting lines and roll forming lines for metal tile, profiled flooring, sandwich panel, etc.
The coiled metal decoiler is equipped with an electric drive and a closed-loop control system for monitoring of the operation speed. A sensor is used to analyze the loop sagging level, depending on it the drive speed is controlled smoothly and steplessly. The operation is free of jerks and overloads, which allowed decreased the drive power and, respectively, the power consumption.

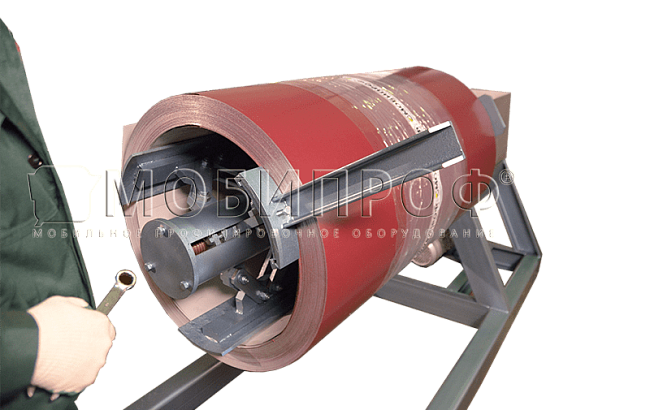

Manual mandrel expansion for coil fixation is carried out synchronically using a screw-nut. To avoid impact loads, an electric protection option is provided in the decoiler design - the frequency converter controls the electric motor shaft speed steplessly.
