Roll froming machine for decorative profile “Cover”

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

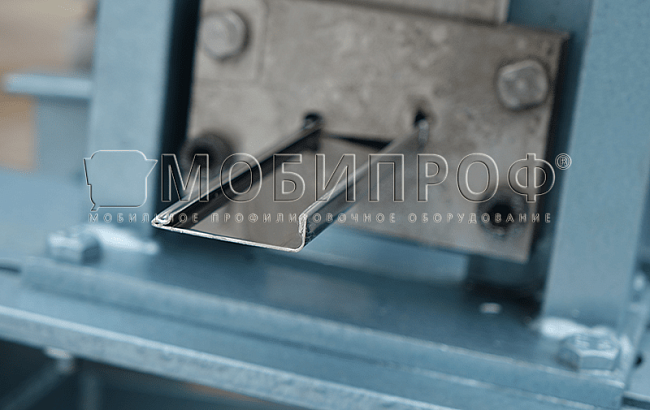

The machine produces decorative profile “Cover” which is used for covering the aluminium clamping shape of glass structures. A band of the required width (strip) made of stainless or galvanized steel with polymer coating, 0.7 mm thick can be used as a workpiece.

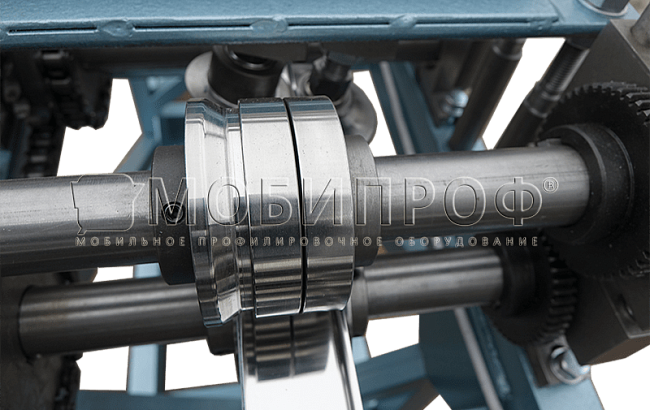

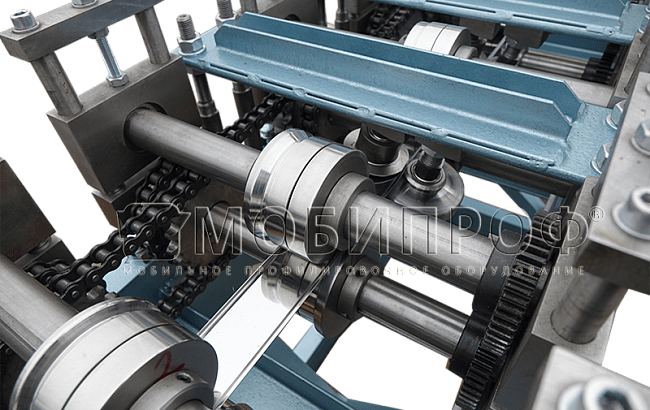

The forming rollers are made of heat-treated instrument steel, which ensures high wear resistance, and metal coating is not damaged during rolling.

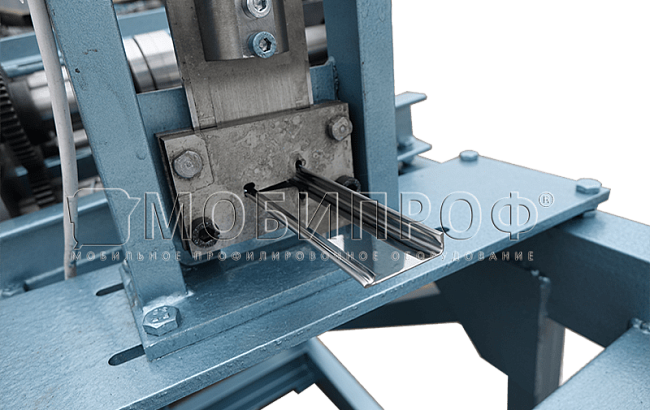

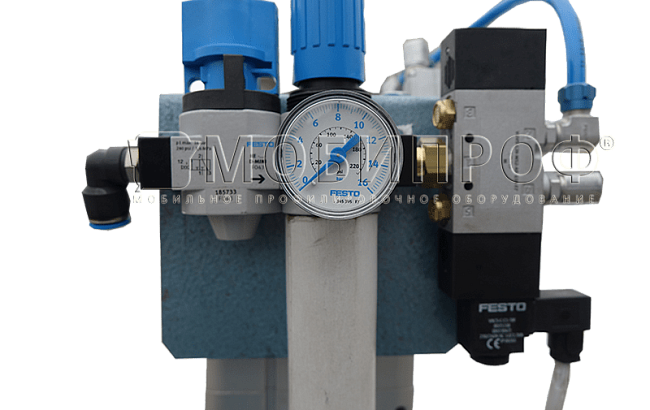

To be able to operate in automatic mode, the roll forming machine is additionally equipped with a pneumatically operated profile cut off device (stationary cut) for cutting the shapes and the numerical control system (CNC) which is used to enter a production program (length and quantity of items).

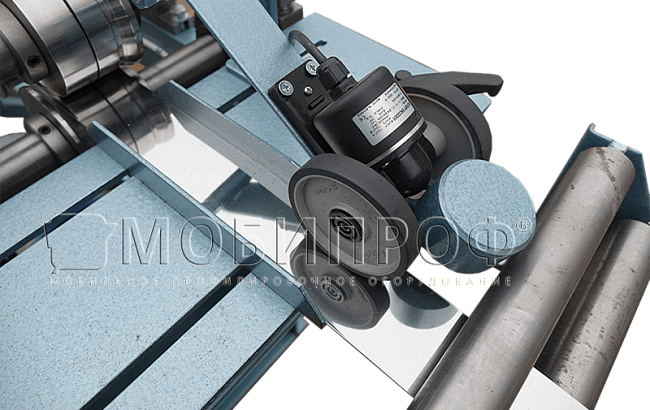

The finished profile length is accurate to ±1 mm. A cantilever decoiler is installed additionally for uncoiling the band. The calibration mill stand allows setting up the machine for operation with a particular metal type and thickness simply and quickly.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

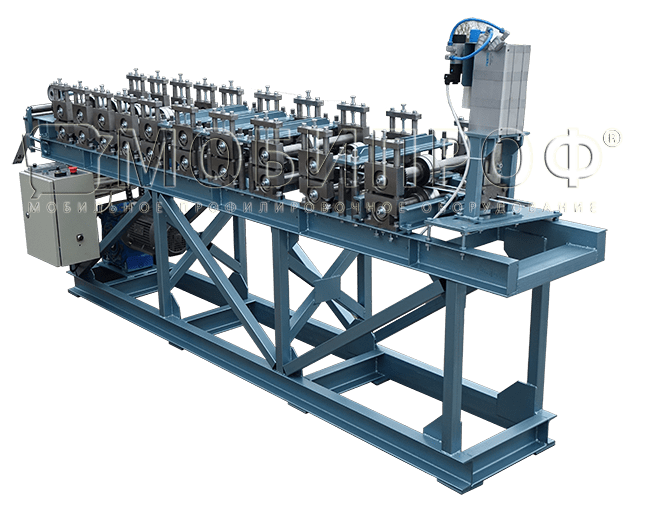

* On the photo, the machine shown with optional equipment.

Advantages
  • calibration mill stand for fine-adjustment for necessary thickness and metal type;
  • the optimized configuration of shaping rollers for high-quality rolling;
  • heavy-duty maintenance-free bearing assemblies;

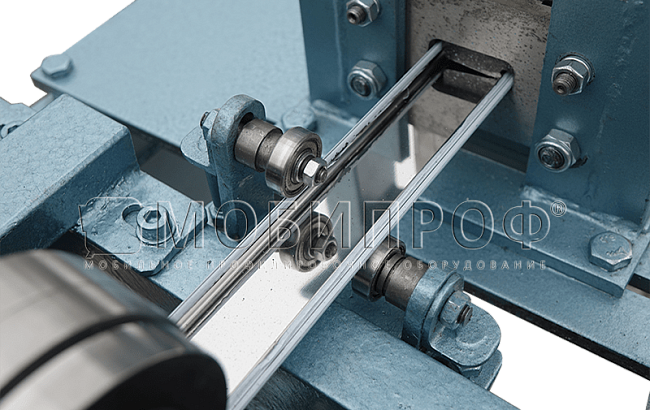

  • movable entry guides;
  • design simplicity and reliability.
Specifications
Production speed, m/min up to 10
Soft steel thickness S235JR, mm 0,7
Maximum width of strip, mm 59
Drive power, kW 2,2
Supply voltage, V 380 (220 NC)
Dimensions, LхWхH, mm 2900x550x1100
Weight, kg 650
Video
Types of profiles
Strip width
60 mm

Profile width
39х10 mm
UU-39х10.Зb.07H
