Garden bed guarding roll forming machine

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

Mobiprof SPS-225x20-80x80.05 roll forming machine is designed to produce C- chanel, which is used as a garden seedbed fences posts. As a workpiece can be used cold-rolled galvanized steel with polymer coating.

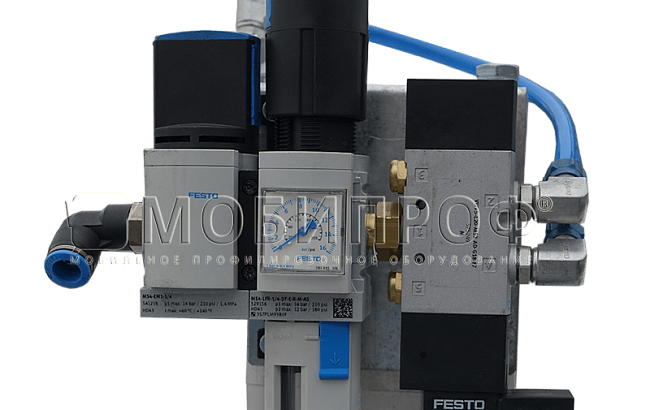

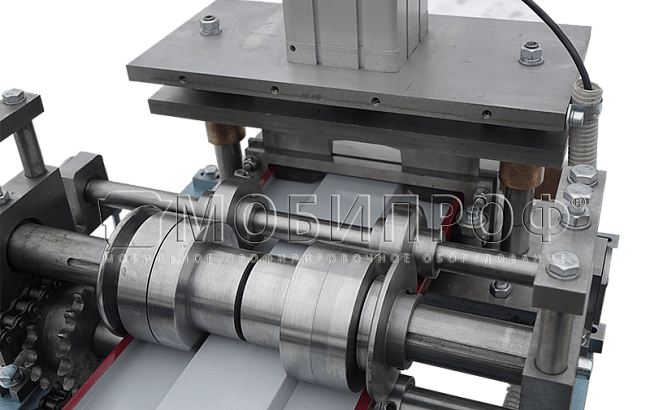

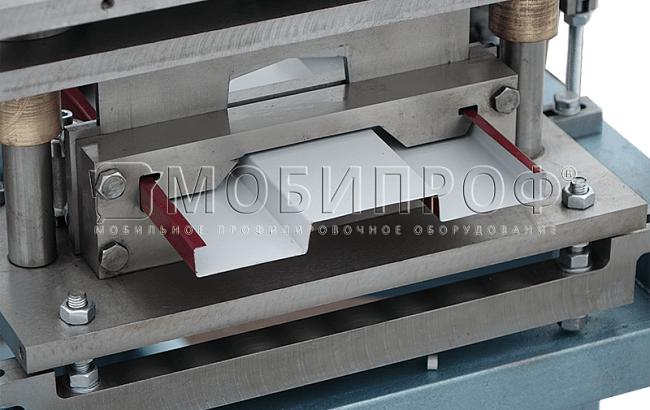

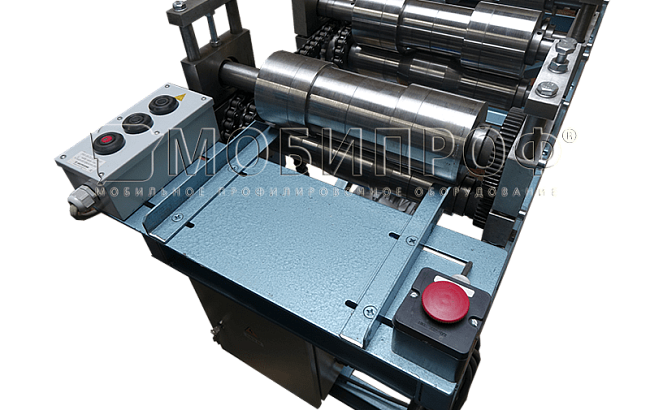

The machine can operate both in semi-automatic and in automatic mode. In semi-automatic mode operator should press “Start” button and provide feeding of specific cut length blanks into the machine. In the automatic mode the line comprises a decoiler for feeding band into the machine, a device for cutting the shapes into specific cut lengths (pneumatically-operated stationary guillotine) and automated control system.

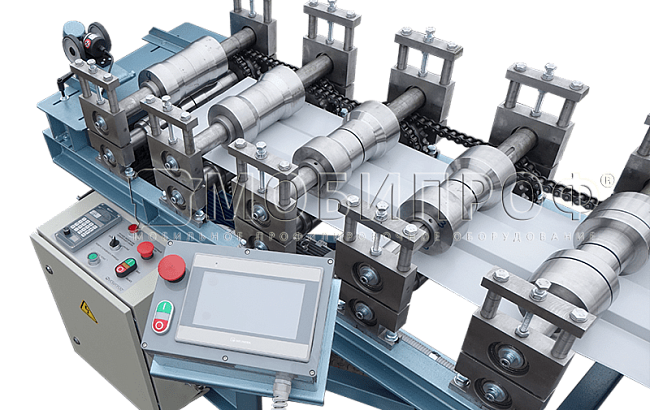

Using the automated control system the length of finished shapes and their quantity are set, and up to 10 production programs can be entered into memory.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

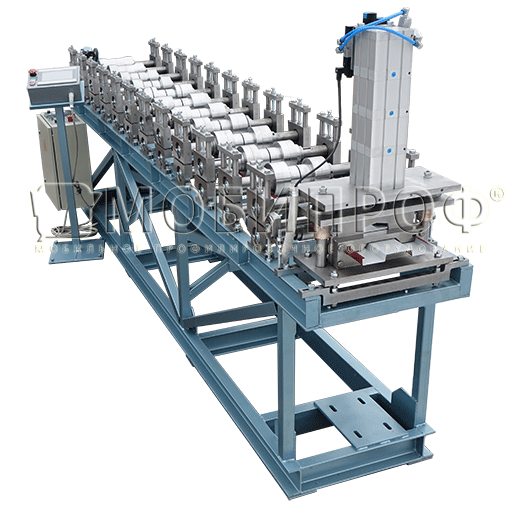

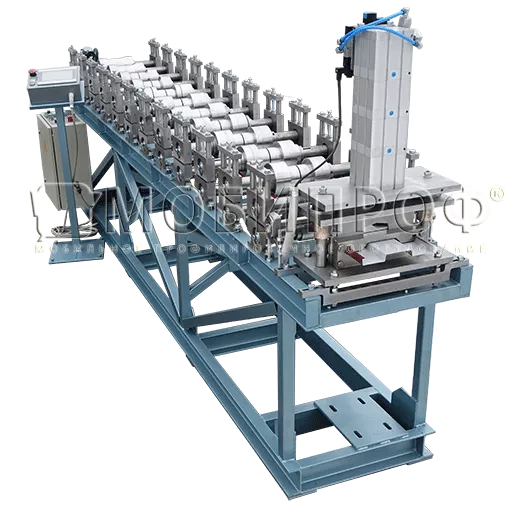

* On the photo, the machine shown with optional equipment.

Advantages
  • design simplicity and reliability;
  • unlimited length of produced shapes;

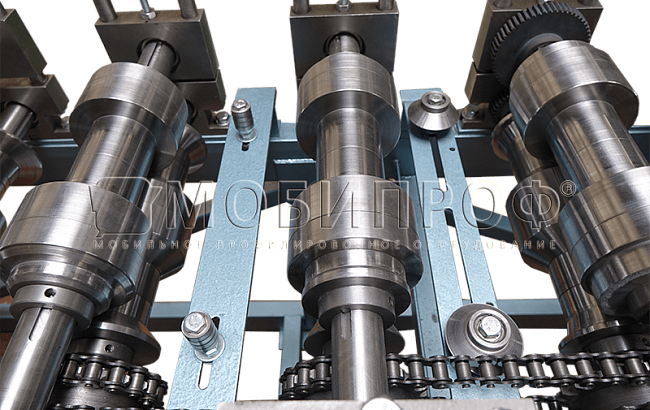

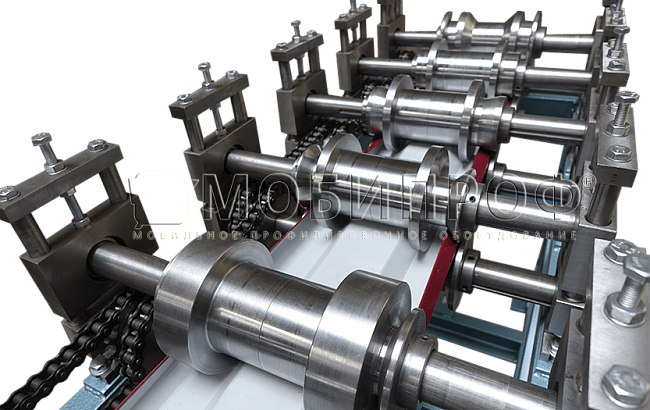

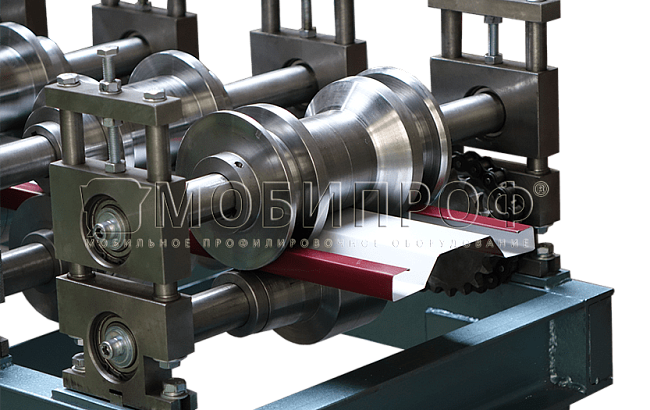

  • the optimized configuration of shaping rollers for high-quality rolling;

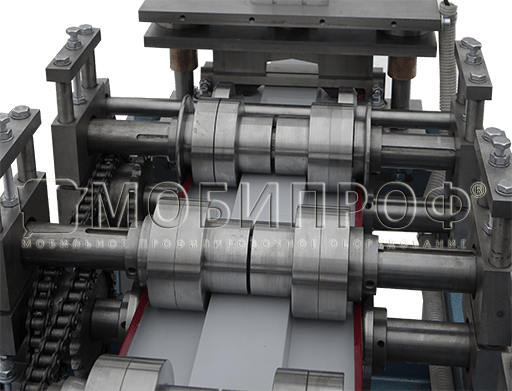

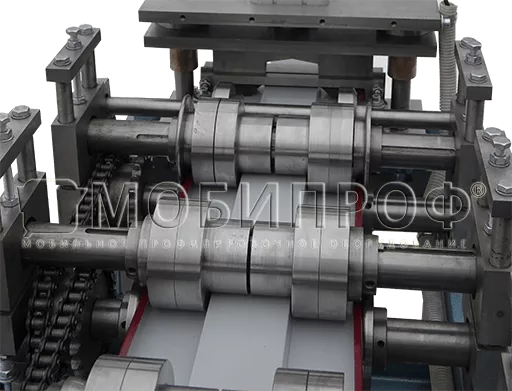

  • calibration mill stand;
  • used either as a separate unit or as a part of automated line;
  • warranty.
Specifications
Production speed, m/min up to 15
Soft steel thickness S235JR, mm 0,5
Maximum width of strip, mm 312,5
Drive power, kW 3,0
Supply voltage, V 380
Dimensions, LхWхH, mm 3500x900x1550
Weight, kg 850
Video
Types of profiles
Strip width
312,5 mm

Profile dimensions
225х20 mm
CP-225x20-80x80.05
Strip width
312.5 mm

Profile dimensions
198х23х24 mm
CPC-198х23х24
