Line for heat spreading plate shapes

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

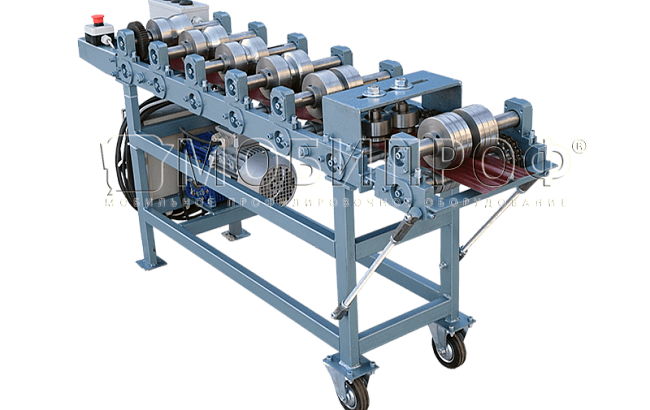

The machine SPO-08.17hF16х140 is intended for profiling heat spreading plates applied for construction of heating floor. Galvanized steel or aluminium alloy are used as the rolled material.

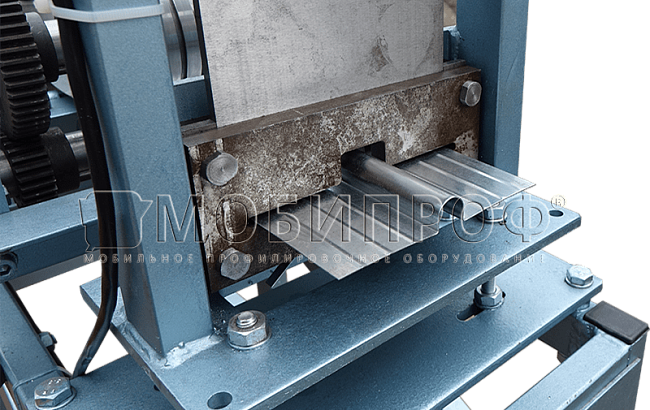

The heat spreading plates production machine can operate both specific cut length blanks, and band. If band is used, the machine shall be equipped with a decoiler, cutting guillotine and numeric control system.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

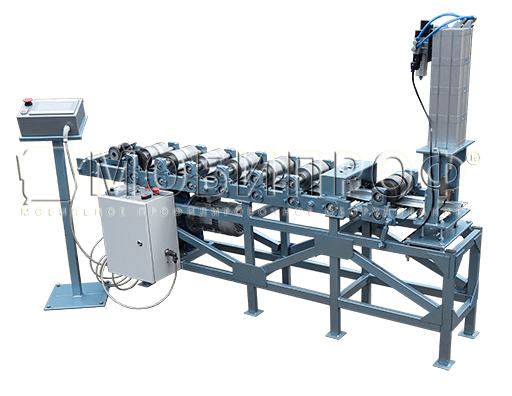

* On the photo, the machine shown with optional equipment.

Advantages

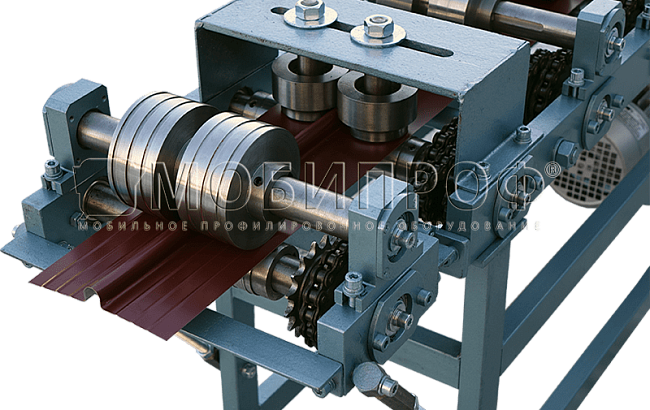

  • calibration mill stand for fine-adjustment for necessary thickness and metal type;

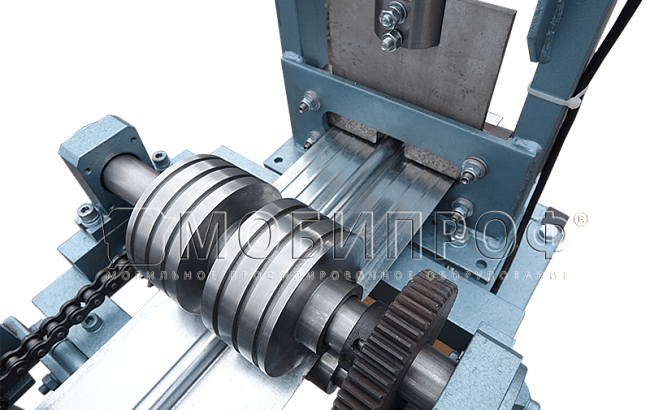

  • the optimized configuration of forming rolls for high-quality rolling of all metal types;
  • equiped with additional gear wheels and side idle rollers for provision of shape rolling and ideal configuration;
  • wear-resistant hardened rollers made of alloyed structural steel;
  • simple and reliable design.
Specifications
Production speed, m/min up to 7
Soft steel thickness S235JR, mm 0,4-0,8
Maximum width of strip, mm 163
Drive power, kW 0,75
Supply voltage, V 380 (220 NC)
Dimensions, LхWхH, mm 1490х390х750
Weight, kg 180
Video
Types of profiles
Strip width
163 mm

Profile width
140 mm
SPO-08 17хØ16х140
Strip width
170-300 mm

Profile width
140-270 mm
SPO-08.21хØ20х140
