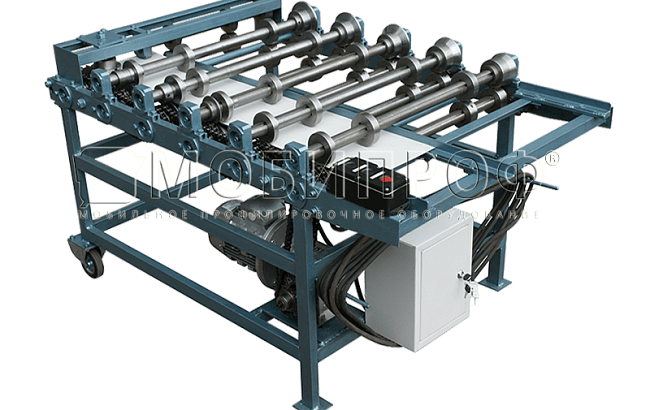

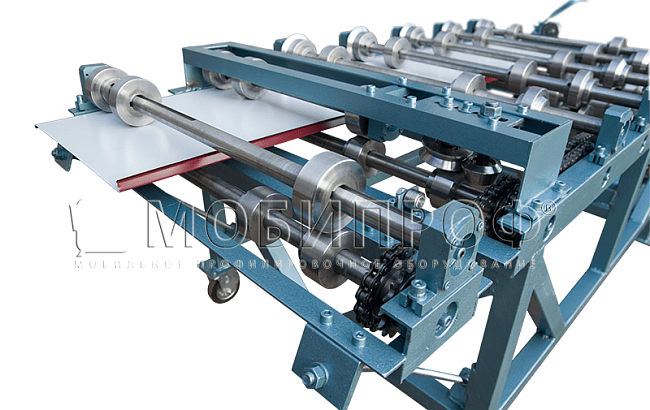

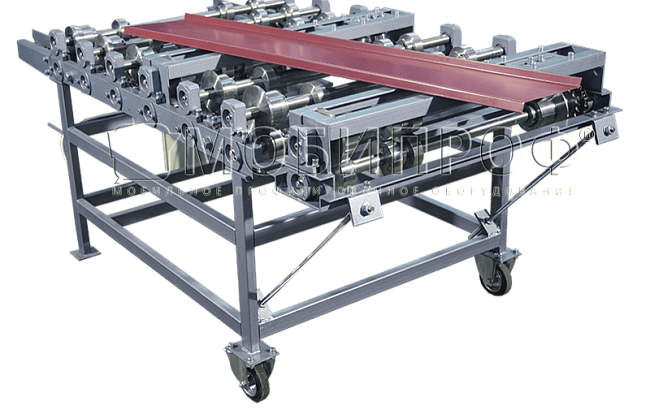

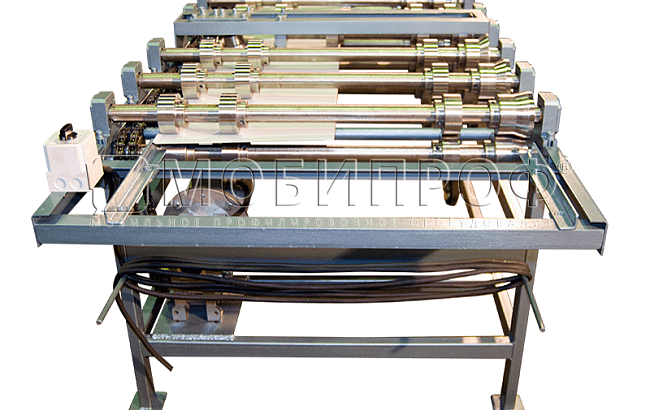

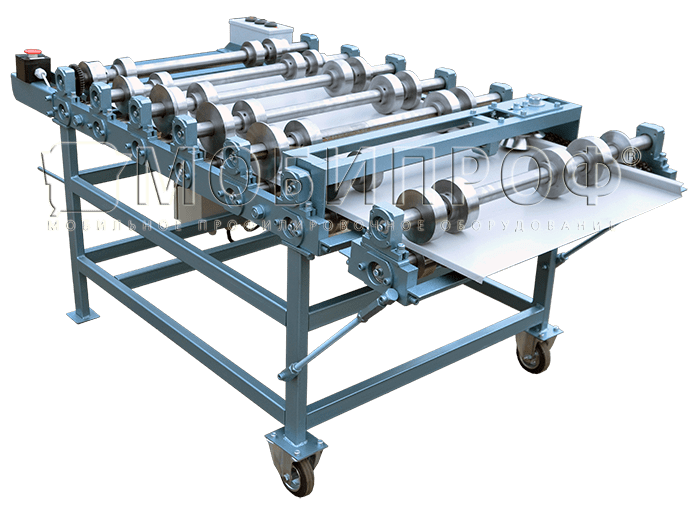

Window trim roll former

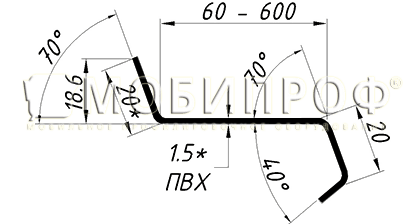

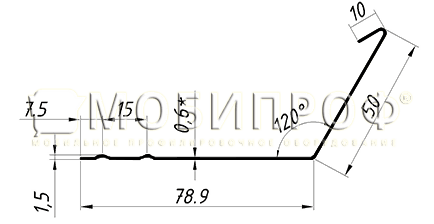

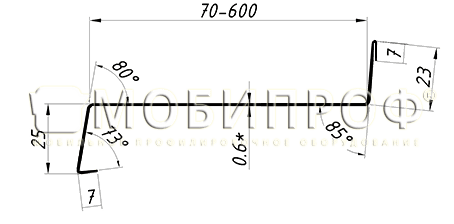

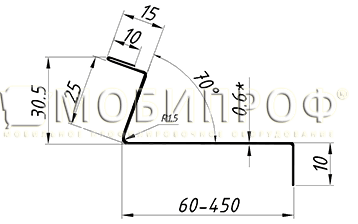

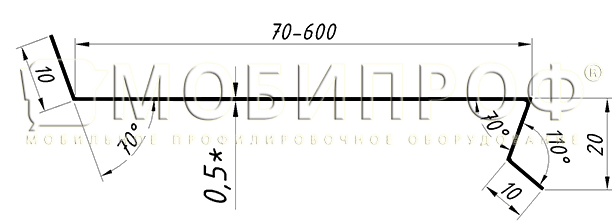

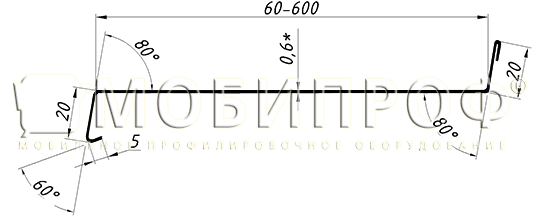

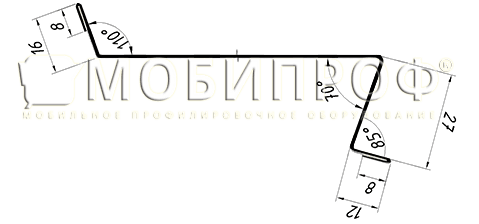

PK series shaping machines are designed for production of “Window trim” profile made of coiled galvanized steel or steel with polymer coating, 0.4 to 0.6 mm thick.

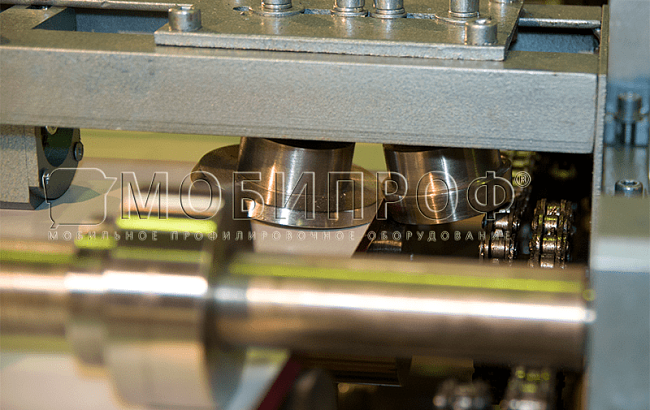

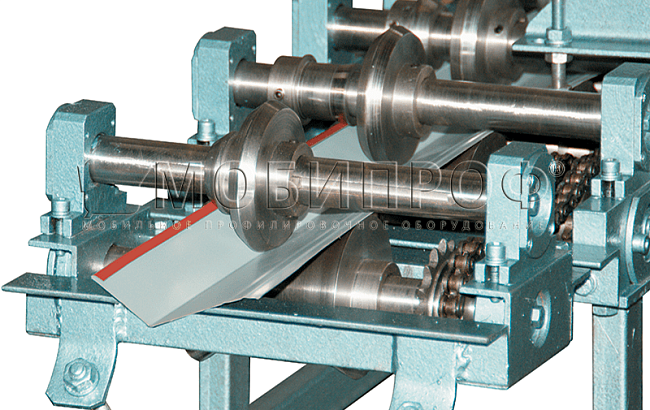

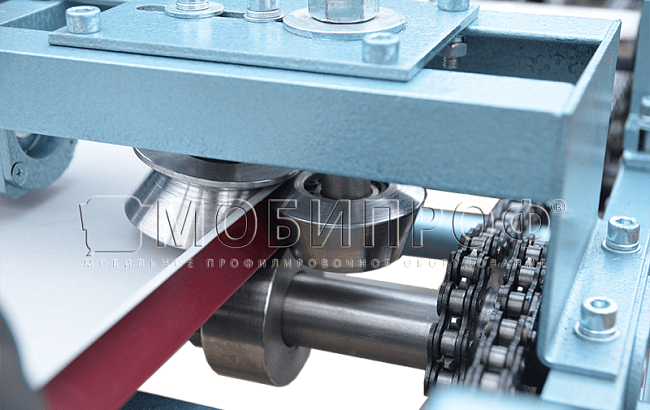

Six working stands with optimized configuration of forming rollers combined with the last straightening stand ensures high quality of the produced items. Jointly treated bearing and polished supports for obtaining the required bearing hole positioning precision ensure high rigidity, ideal parallelism and alignment of the machine shafts for window trim bending.

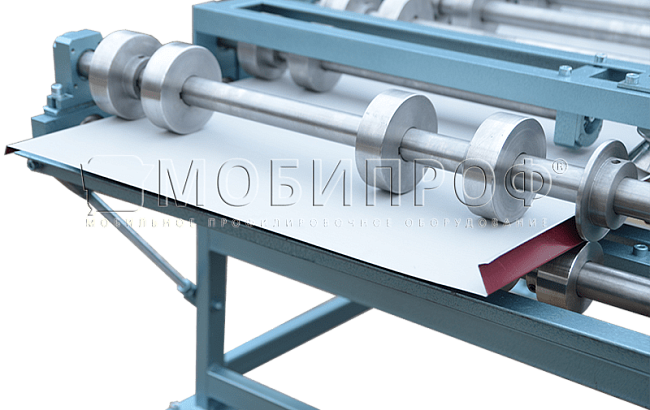

The rolling of the workpiece is performed in two passes - one side at a time. To facilitate transportation and handling on site, the upper unit can be easily removed from the frame. с рамы.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

• calibration mill stand at way out of the machine allow performing a quick fine-adjustment for necessary thickness and metal type;

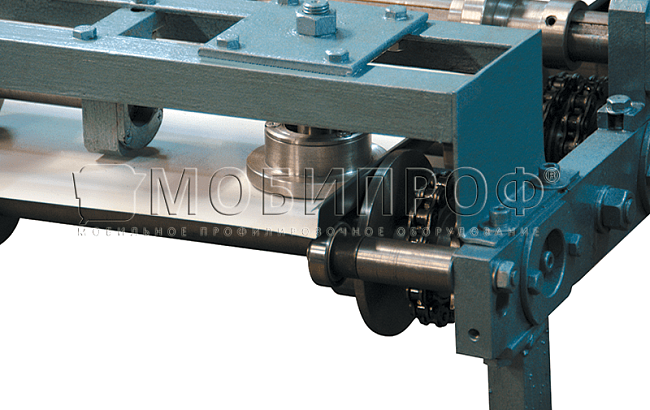

• movable guides allow adjusting the seam size if required;
• jointly treated bearing high rigidity, perfect parallelism and alignment of the shafts;
• it is ideal for use on a construction site due to its light weight and equipment overall dimensions;
• affordable price, one-year warranty and lifetime service support by the manufacturer.
