Description

SO series roll forming machines are designed to produce metal siding - Linear panel /Ship Deck It is roll formed from light gauge galvanized steel with polymer coating: polyester, plastisol 0.4 to 0.7 mm thickness. Workpiece must be a certain width and pre-catted of required length or a rolled up strip. The optimized configuration of shaping rollers ensures smooth bending of the shapes and consistent dimensions over the whole length of the product.

The machine for metal siding profile is equipped with a preliminary punching module for mounting holes, feeding and calibration mill stands, heavy-duty bearing housings. It is designed to produce only one shape type. The most popular shape types: - Linear panel /Ship Deck/Bar.

The siding production machines are custom-built on pre-agreed profile drawing. The lead time is 4 to 8 weeks.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

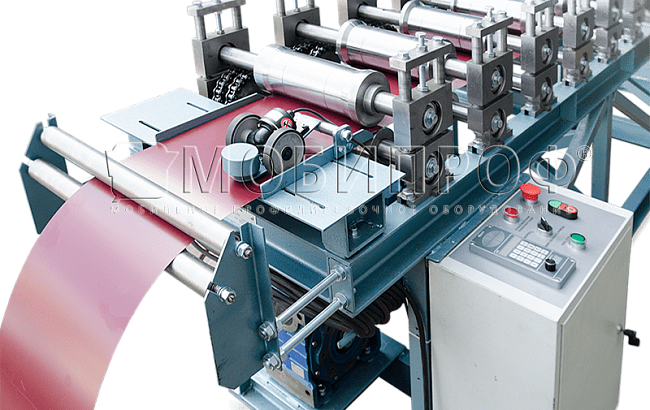

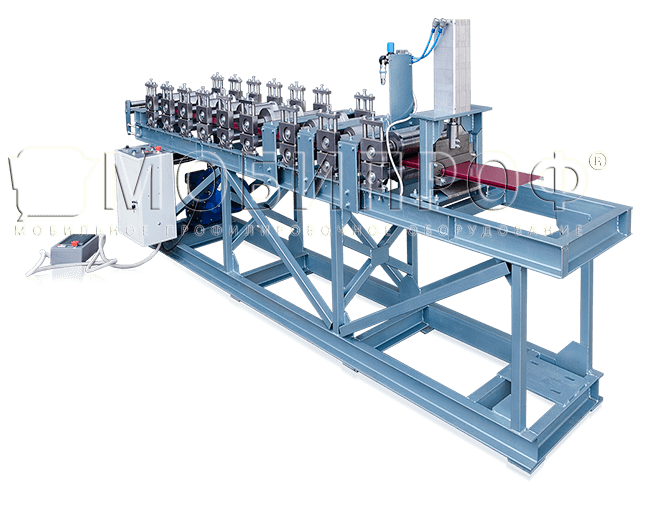

* On the photo, the machine shown with optional equipment.

Advantages
  • calibration mill stand for fine-adjustment for necessary thickness and metal type;

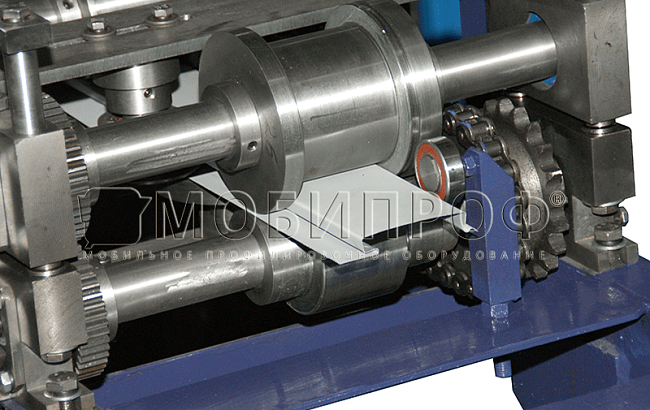

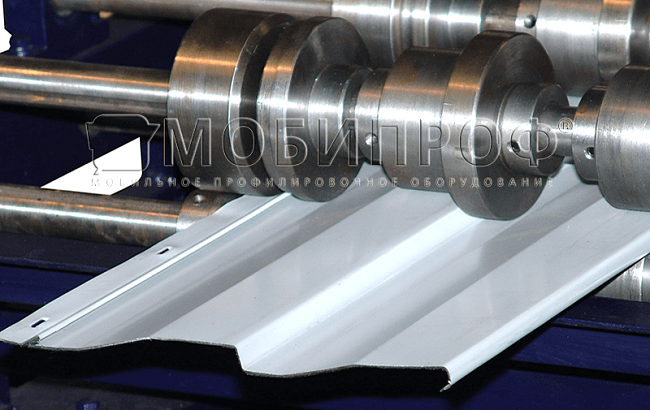

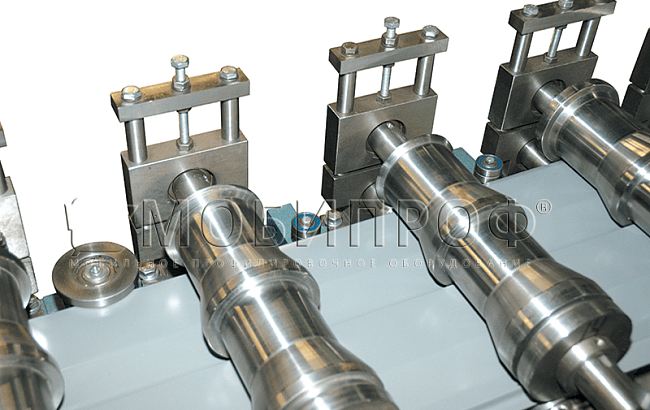

  • the optimized configuration of shaping rollers for high-quality rolling;

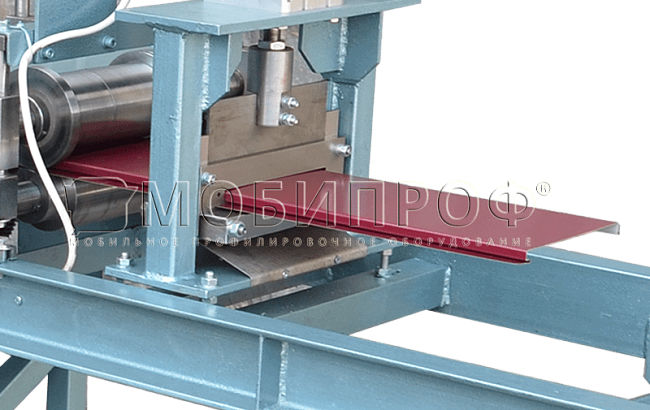

  • punching unit mounting holes;

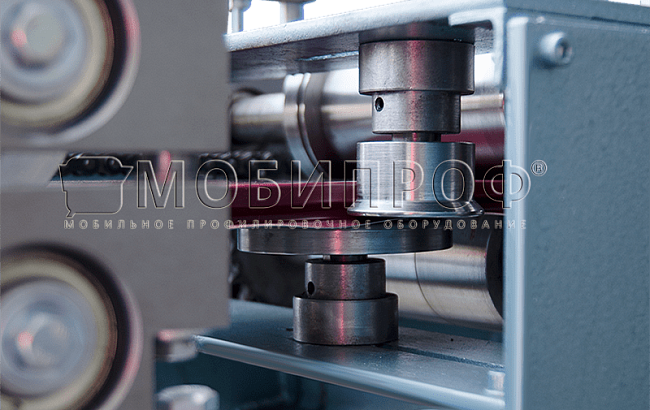

  • additional gear and supporting side rollers to provide rolling of the shape of ideal configuration;
  • heavy-duty maintenance-free bearing assemblies;
  • movable entry guides;
  • design simplicity and reliability.
Specifications
Production speed, m/min up to 10
Soft steel thickness S235JR, mm 0,4-0,7
Drive power, kW 2,2
Supply voltage, V 380 (220 NC)
Dimensions, LхWхH, mm depends on the type of profile
Weight, kg depends on the type of profile
Video
Types of profiles
Strip width
304 mm

Profile width
251,4 mm
SO-14.1х227.06
Strip width
313 mm

Profile width
263,1 mm
SO-13.5х240.06
Strip width
250 mm

Profile width
203,4 mm
SO-15x180
