Double standing seam machine SFP-700 LITE

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Standard and options
Description

The key difference between SFP-700 LITE and SFP-700 is that machine does not have the 6th сalibration mill stand.

Using a сalibration mill stand, fine tuning to the required metal thickness and type is performed. It allows to eliminate the screw-shape effect on the panel being rolled. In respect of other parameters, SFP-700 Light is as good as the high-end model.

The machine is lightweight and small-sized which allows lifting it onto the roof easily and roll roof panels on the job site. The machine manufactures panels with single and double standing seam of straight and trapezoidal form using all types of coiled roofing metal or preliminarily prepared sheets of the required length and width.

The profile width is adjusted stepwise by moving the shaping roller on one side of the machine by the desired width.


* On the photo, the machine is shown with additional equipment.

Advantages
  • possibility of installing additional bead rollers for half round or trapezoidal type of ribs;
  • it is possible to install an additional set for forming arch-shaped roofing patterns;
  • movable guides allow adjusting the seam size if required;
  • jointly treated bearing high rigidity, perfect parallelism and alignment of the shafts;

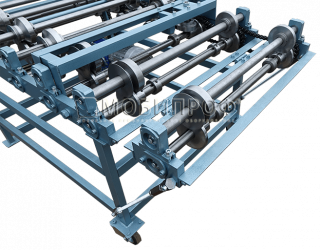

  • to support the center of the panel being rolled, the shaping mechanism is equipped with additional rollers;
  • it is ideal for use on a construction site due to its light weight and equipment overall dimensions.
Specifications
Infeed width, mm< 250-700
Soft steel thickness 0,45-0,7
Lock height, mm 25
Operating speed, m/min 6
Supply voltage, V 380/3-Ph
Drive power, kW 0,75
Dimensions, LхWхH, mm 1450х870х830
Weight, kg 135
Standard and options
Options
Set of embossing roller dies "half round"
Set of embossing roller dies "trapezoidal"

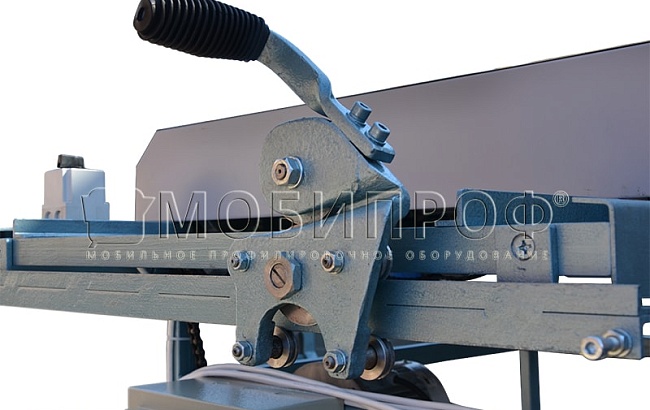

Manual transversal cutting before roll forming
Kit to operate with maximum steel thikness 0.7 mm
For single-phase (220V) operation.
Kit for standing seam roof panel curving "ARC". The minimum radius is 9 meters.
Floor-standing metal decoiler HP-700
Manual with numerical display
Types of profiles
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock height
25 мм
Straight roof panel
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock Height
25 мм
Roof panel with "trapezoidal" type of rib
Strip width
250-700 mm

Axial dimension
245-625 мм

Lock Height
25 мм
Roof panel with "half round" type of ribs
