Line for Metal Palisade Pales production

Price on request

Последний раз этот товар купили вчера

Прямо сейчас этот товар просматривает 1 человек

array(0) {
}

Description
Advantages
Specifications
Video
Description

“Metal picket fence” series machines are designed for production of metal “Palisade Pales” the main components of palisade fencing. A specific cut length flat or band made of galvanized, cold-rolled black steel, as well as steels with polymer coating are used as a blank. Metal thickness varies from 0.4 mm to 0.6 mm.

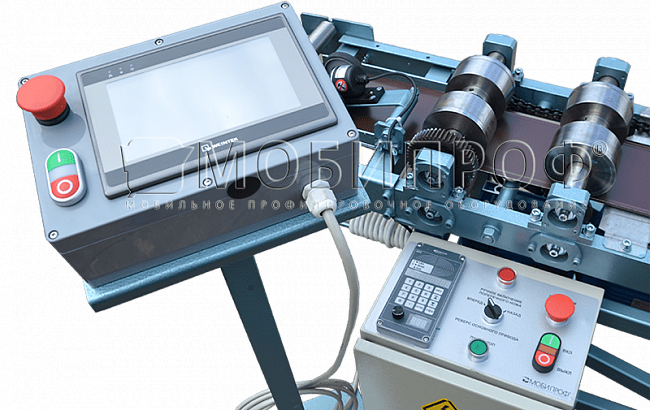

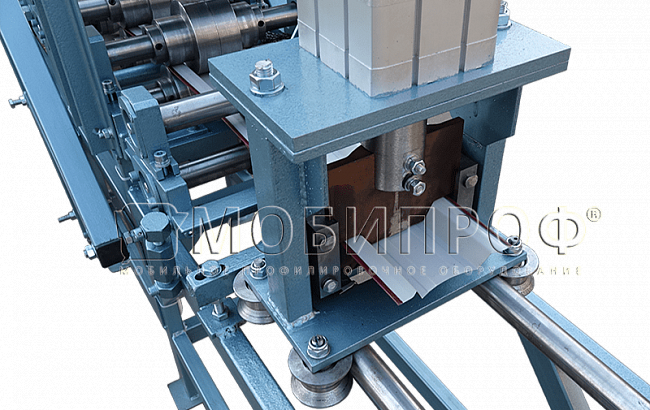

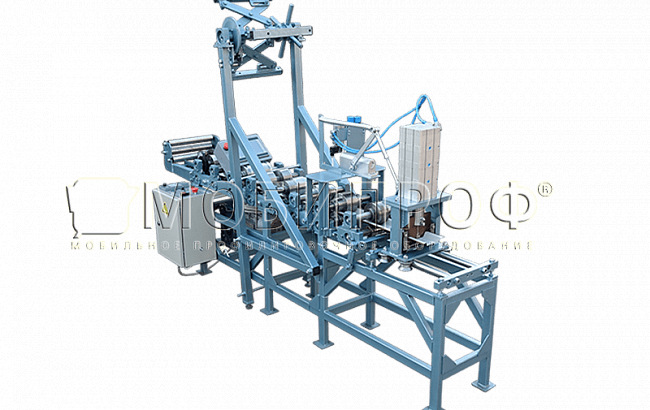

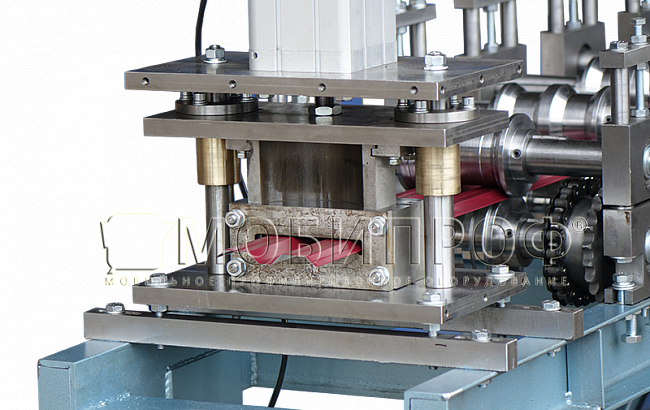

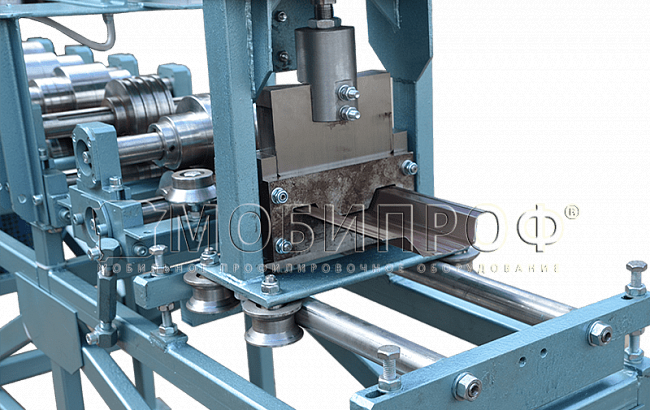

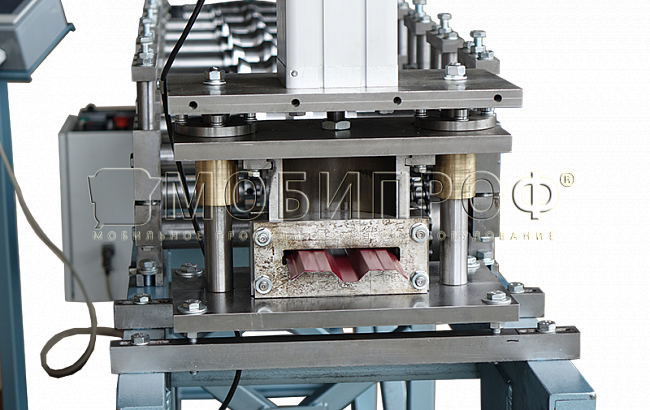

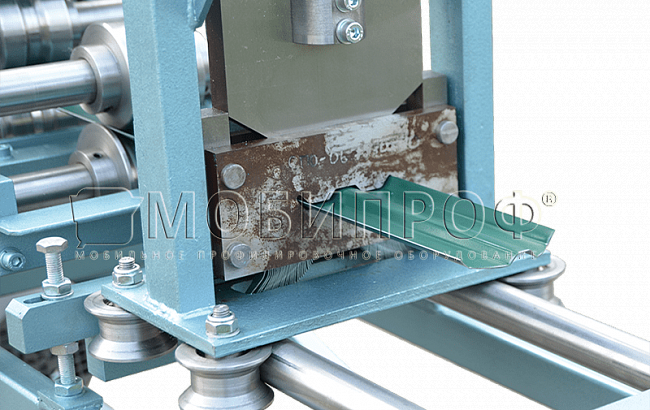

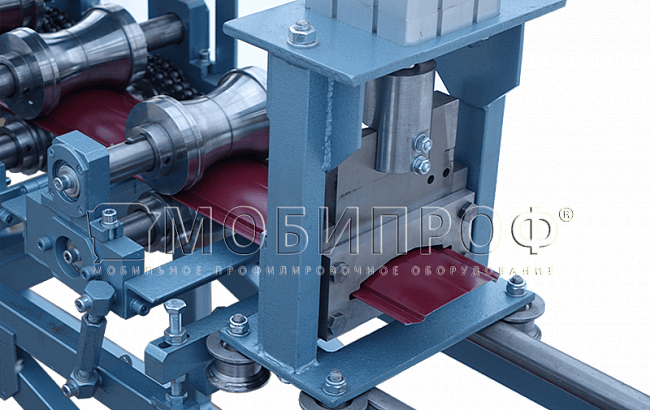

A machine for the production of metal fence (eurometal fence) can operate in semi-automatic and automatic mode. In semi-automatic mode operator should press “Start” button and provide feeding of workpiece with a pre-cuted length and width into the machine. In the automatic mode, the line shall comprise a band decoiler for feeding metal into the machine, a device for cutting the profiles into specific cut lengths (flying 3D guillotine) and automated control system. Profile 3-D guillotine in one cut makes the bottom of the profile straight, and the top of the profile with a given contour.

A metal picket fence machine produces one type of preliminarily agreed profile. Our company can manufacture a custom-built machine to produce “Palisade Pales” profile according to the drawing of your profile of the following types:

  • Classical
  • With folding
  • U- shaped
  • Semicircular
  • М- shaped

A metal “Palisade Pales” machine is manufactured under the order at a pre-approved profile drawing.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

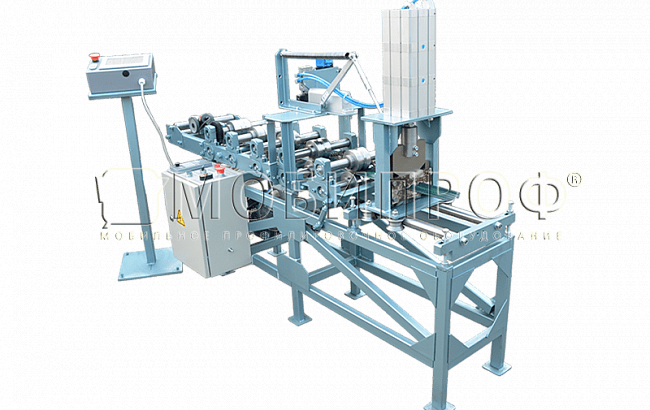

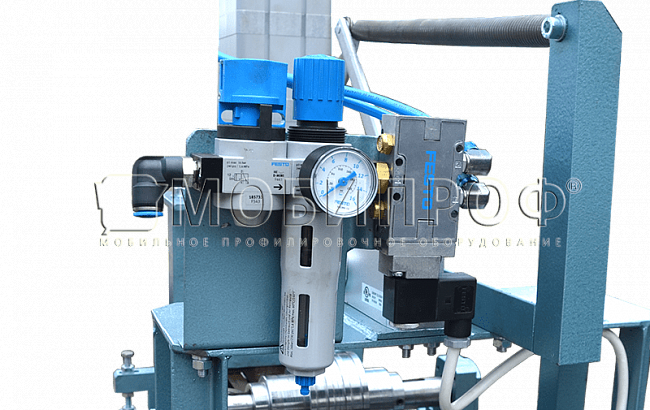

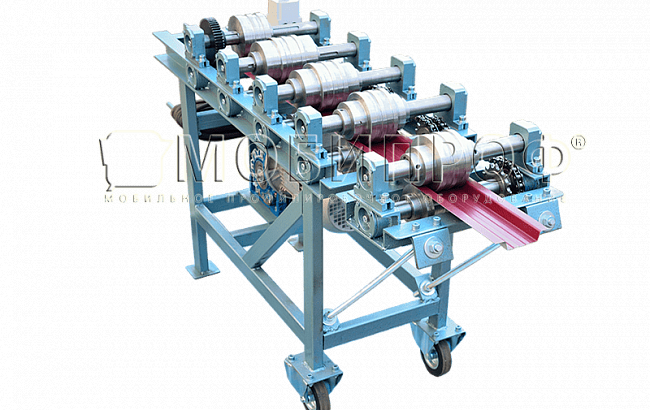

* On the photo, the machine shown with optional equipment.


Advantages
  • the jointly machined supports ensure high stiffness, ideal parallelism and shaft alignment;
  • the optimized configuration of forming rolls for high-quality rolling of all metal types;
  • heavy-duty maintenance-free bearing assemblies;
  • high quality products;
  • availability of rolls for adjusting the shape straightness;
  • unlimited length of produced shapes;
  • high productivity;
  • compact dimensions;
  • the simple and durable construction;
  • strong welded frame;
  • used either as a separate unit or as a part of automated line;
  • no need in supervised installation and start-up and adjustment works;
  • affordable price, 12-month warranty and lifetime service support by the manufacturer
Specifications
Production speed, m/min up to 7
Soft steel thickness S235JR, mm 0,4-0,6
Drive power, kW 0,75-1,5
Supply voltage, V 380 (220 for NC)
Dimensions, LхWхH, mm depends on the type of profile
Weight, kg depends on the type of profile
Video
Types of profiles
Strip width
123 mm

Profile dimensions
100 mm
SPO-05.17х100
Strip width
156 mm

Profile dimensions
125 mm
SPO-05.20x125
Strip width
156 mm

Profile dimensions
125 mm
SPO-05.20x125.3
Strip width
144 mm

Profile dimensions
125 mm
SPO-04.20х125
Strip width
156 mm

Profile dimensions
115 mm
SPO-05.25x115-3в
Strip width
112 mm

Profile dimensions
86 mm
SPO-05.10х86
Strip width
139 mm

Profile dimensions
110 mm
SPO-05.14х110
Strip width
119 mm

Profile dimensions
95 mm
SPO-06.20x95
Strip width
111 mm

Profile dimensions
85 mm
SPO-06.10x85-10x180
Strip width
170 mm

Profile dimensions
82,5 mm
КТ-06.85х24х57
Strip width
140 mm

Profile dimensions
114 mm
SPO-06.14x114
Strip width
100-110 mm

Profile dimensions
84-94 mm
SPO-06.17x94.30x150
Strip width
110 mm

Profile dimensions
76.4 mm
SPO-06.15x30.15
Strip width
125 mm

Profile dimensions
103 mm
SPO-06.10x45.103
Strip width
131 mm

Profile dimensions
116.6 mm
SPO-06.10x2.117
Strip width
96 mm

Profile dimensions
79 mm
SPO-06.11x79
Strip width
119 mm

Profile dimensions
96 mm
SPO-06.14x96
Strip width
125 mm

Profile dimensions
102 mm
SPO-06.14x102
Strip width
125 mm

Profile dimensions
107.6 mm
SPO-06.12x108
Strip width
79 mm

Profile dimensions
69,6 mm
SPO-06.7x10x70
Strip width
89 mm

Profile dimensions
79.6 mm
SPO-06.7x20x80
Strip width
138 mm

Profile dimensions
110 mm
SPO-06.10x110
Strip width
139 mm

Profile dimensions
114 mm
SPO-06.11x114
Strip width
138 mm

Profile dimensions
120 mm
SPO-05.15x120.R105
Strip width
125 mm

Profile dimensions
105 mm
SPO-05.12х105
Strip width
111-114 mm

Profile dimensions
87,2 mm
SPO-06.9x14x87-Зв
Strip width
120 mm

Profile dimensions
99 mm
SPO-06.14х100
Strip width
120 mm

Profile dimensions
99 mm
SPO-06.14x100_3Dx23
Strip width
131 mm

Profile dimensions
106 mm
SPO-06.10x106
Strip width
156 mm

Profile dimensions
125 mm
SPO-05.20x125.3
